ECP-01 Series are High-Speed, long distance Ethernet & PoE extender that makes possible to transmit the Ethernet signal and PoE up to 400m through coaxial cables in different situations. It is cost-effective and time saving solution to migrate existing analog system to IP based system since ECP-01 series support easy installation utilizing the existing coaxial cable. With long distance transmission feature, the device makes to overcome 100 meters distance limitation easily and reduces the construction cost significantly compared with fiber optic configuration.
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
Product Specifications
Model | ECP-01T | ECP-01R | |
---|---|---|---|
Interface | |||
Coax | 1 x 75Ω BNC (Female) - Ethernet over Coax (B-LinX |
||
Ethernet | 1 x RJ45 - 100 Base-T | ||
Transmission Rate | 100Mbps Full Duplex (100Mbps between Intercoax devices) |
||
Transmission Distance | |||
Ethernet | up to 400 m when 100Mbps is used up to 1000 m when 10Mbps is used (5C-HFBT, RG-59 or better) |
||
PoE (PoC) | Up to 400meter (RG-59, RG-6) | ||
LED Indication | Ethernet | 1 x Link (Yellow) / 1 x ACT (Green) | |
Power | |||
Input | B-Linx or DC48V~57V | PoE Switch or DC48V~57V | |
PoE Output | IEEE802.3af (PoE), IEEE802.3at (PoE+), Extra PoE up to 60W with 57V Power Adaptor |
PoE Not Supported PoC Only |
Model | ECP-01T | ECP-01R | |
---|---|---|---|
Mechanical | |||
Dimension | 83(L) x 51(W) x 24(H)mm | ||
Weight | 52g | ||
Environment | |||
Operating Temp | -20 ~ 60°C | ||
Storage Temp | -30 ~ 80°C | ||
Relative Humidity | 10% ~ 90% | ||
Compliance | |||
Certification | FCC, CE, KC, RoHS | ||
Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) |
What's Included?
Package Contents:

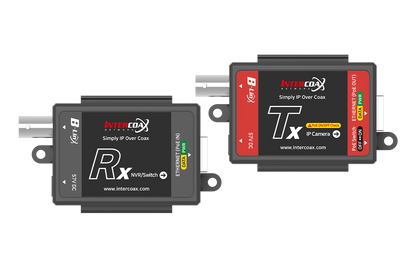

ECP-01T
(Transmitter)
ECP-01R
(Receiver)
Manual
Product Support

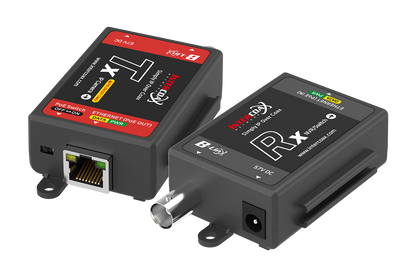

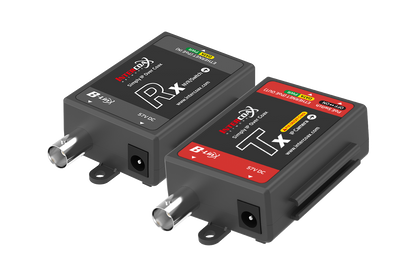

ALP-ECP-01T/R - Single Port Ethernet over Coax Transmitter / Receiver
