Features
Save significant time and reduce hassle, as there's no need for new cable installations; existing cables can be repurposed for Ethernet and PoE transmission. This approach not only saves money by eliminating the need to purchase new cables but also promotes environmental sustainability by reusing existing resources instead of discarding them.
SAVE TIME
SAVE MONEY
SAVE ENVIRONMENT

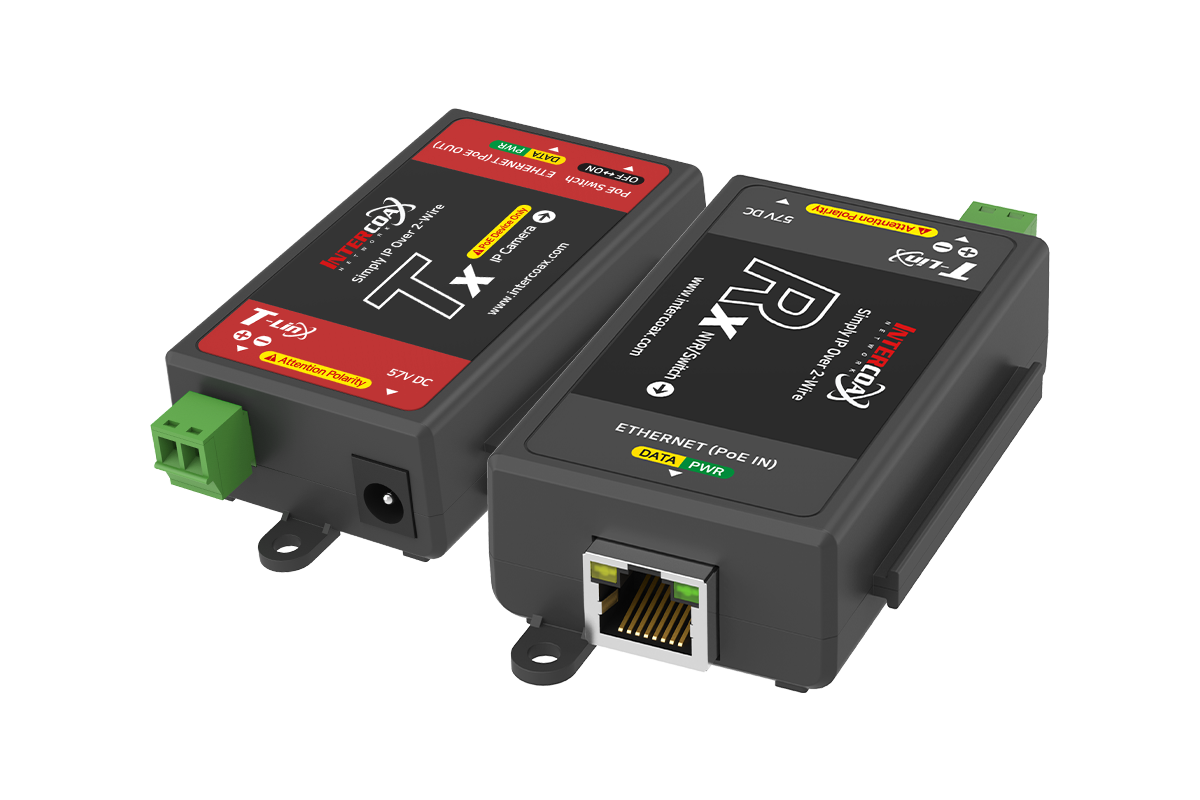

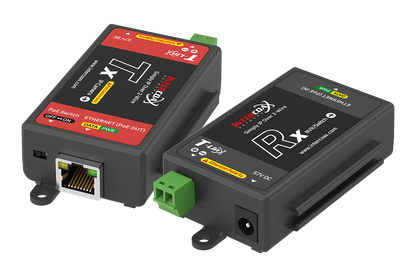

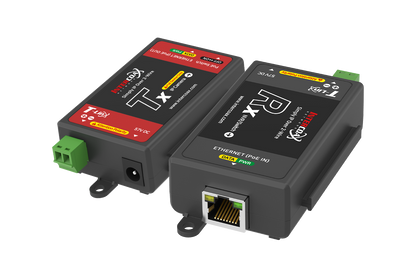

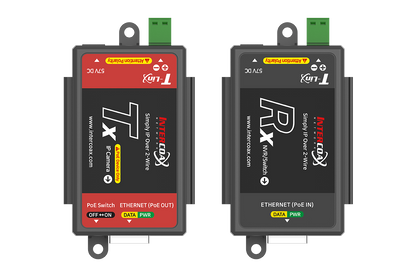

The ETP-01 Series are high-speed, long-distance Ethernet & PoE extenders that enable the transmission of Ethernet signals and PoE up to 300m through a single pair of twisted wires. They offer a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ETP-01 series supports easy installation utilizing existing UTP bundle cables or any single twisted pair cables. With the long-distance transmission feature, these devices easily overcome the 100-meter distance limitation and significantly reduce construction costs compared to fiber optic configurations.
Connection Diagram
Product Specifications
Model | ETP-01T | ETP-01R | |
---|---|---|---|
Interface | |||
2-Wire | 1 x 2-Pin Terminal Block–Ethernet over 2-Wire cable | ||
Ethernet | 1 x RJ45 - 100 Base-T | ||
Transmission Rate | 100Mbps Full Duplex (100Mbps between Intercoax devices) |
||
Transmission Distance | |||
Ethernet | Up to 300m (1 Pair of Cat.5e) | ||
PoE (PoC) | Up to 300m (1 Pair of Cat.5e / 7W Camera) | ||
LED Indication | Ethernet | 1 x Link (Yellow) / 1 x ACT (Green) | |
Power | |||
Input | T-Linx or DC48V~57V | PoE Switch or DC48V~57V | |
PoE Output | IEEE802.3af (PoE), IEEE802.3at (PoE+), Extra PoE up to 60W with 57V Power Adaptor |
PoE Not Supported PoC Only |
Model | ETP-01T | ETP-01R | |
---|---|---|---|
Mechanical | |||
Dimension | 93(L) x 51(W) x 24(H)mm | ||
Weight | 52g | ||
Environment | |||
Operating Temp | -20 ~ 60°C | ||
Storage Temp | -30 ~ 80°C | ||
Relative Humidity | 10% ~ 90% | ||
Compliance | |||
Certification | FCC, CE, KC, RoHS | ||
Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) |
What's Included?
Package Contents:
ETP-01T
(Transmitter)
ETP-01R
(Receiver)
Terminal
Connector x 2
Manual
Product Support
ALP-ETP-01T/R - Single Port Ethernet over 2-Wire Transmitter / Receiver
