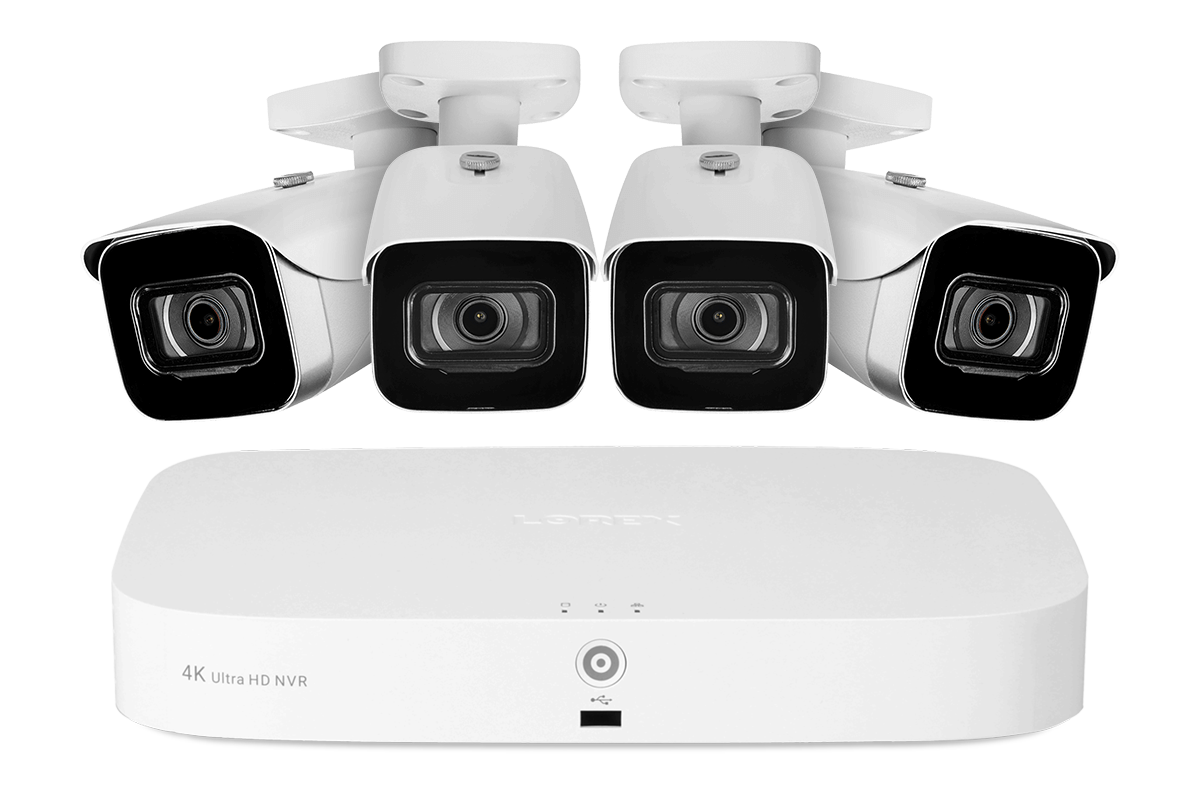

New NVR 8-Channel Fusion NVR System with Four 4K (8MP) IP Cameras
New NVR 8-Channel Fusion NVR System with Six 4K (8MP) IP Cameras
4K 8-channel 2TB Wired NVR System with 4 Cameras
4K 8-channel 2TB Wired NVR System with 6 Cameras
4K 8-channel 2TB Wired NVR System with 8 Cameras

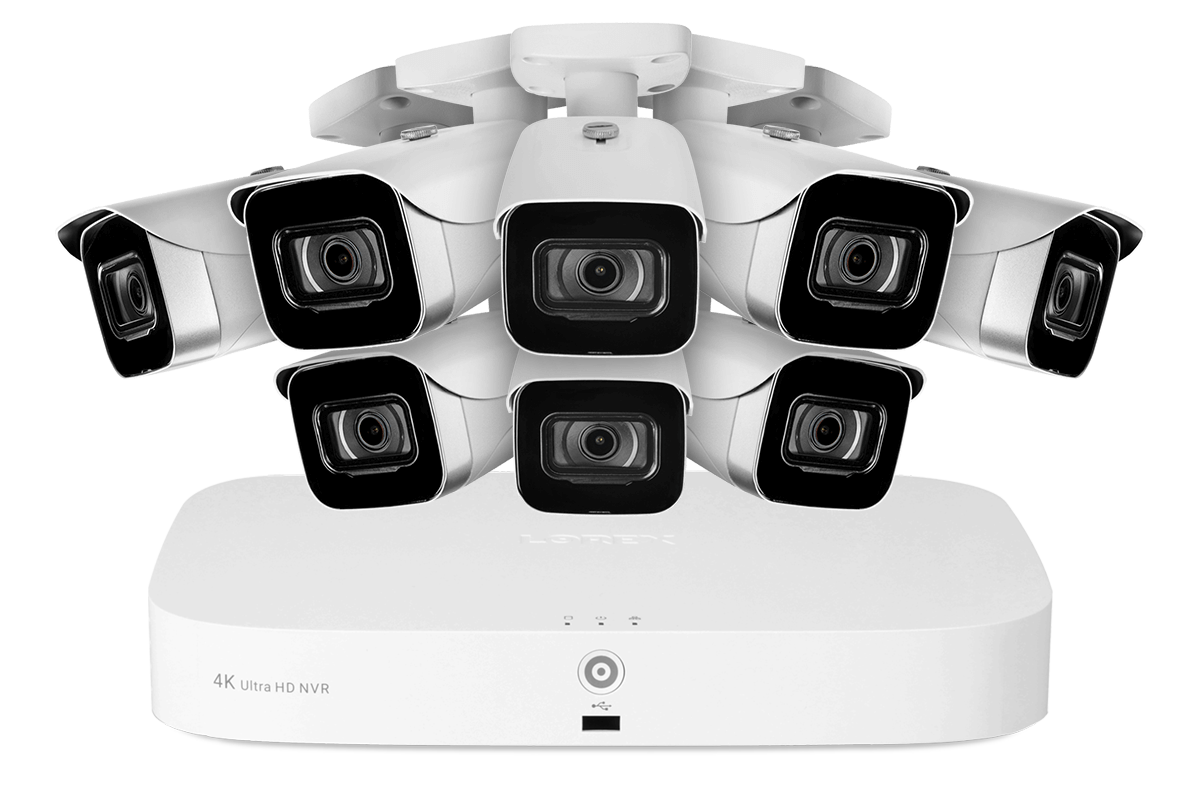

8-Channel Fusion NVR System with Eight 4K (8MP) IP Cameras
zoom Roll over image to zoom in Click on image to zoom

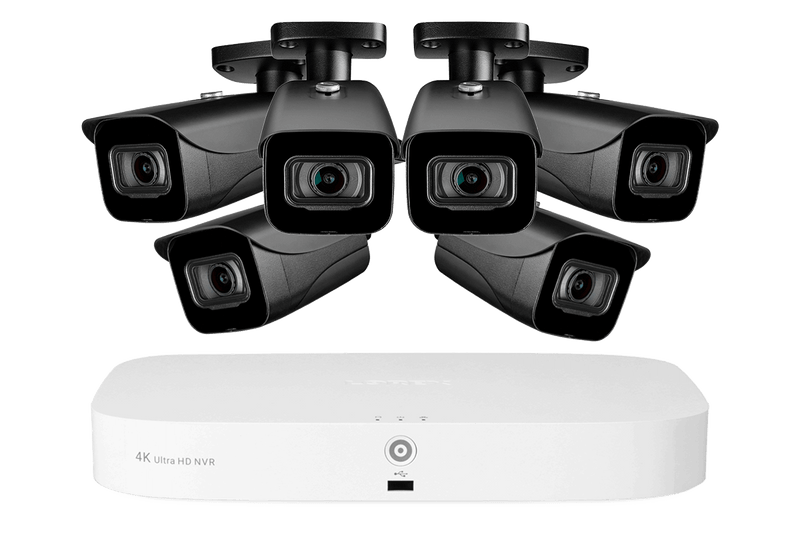

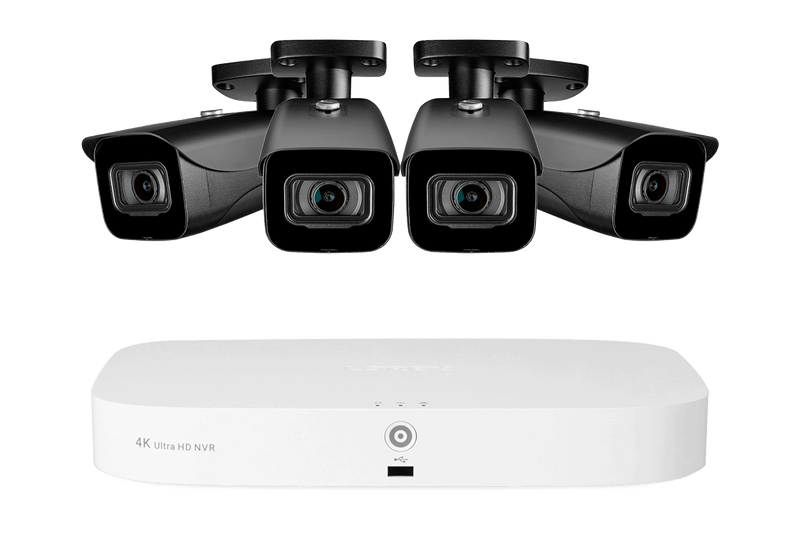

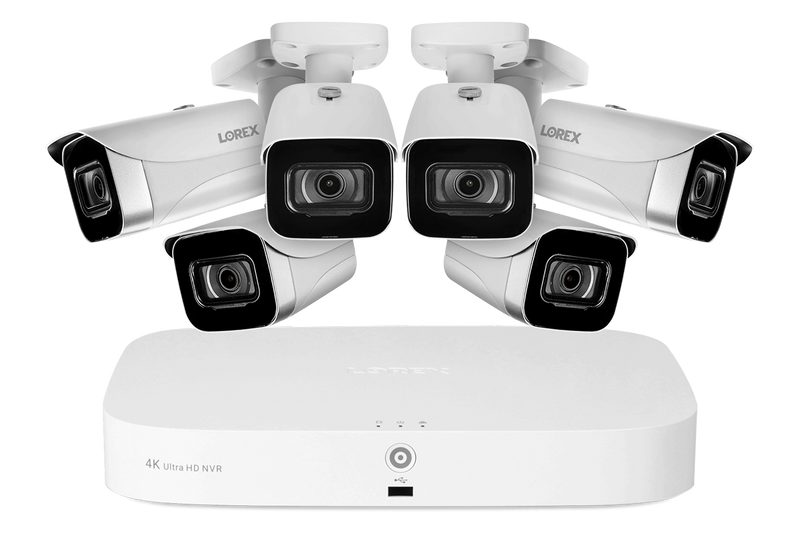

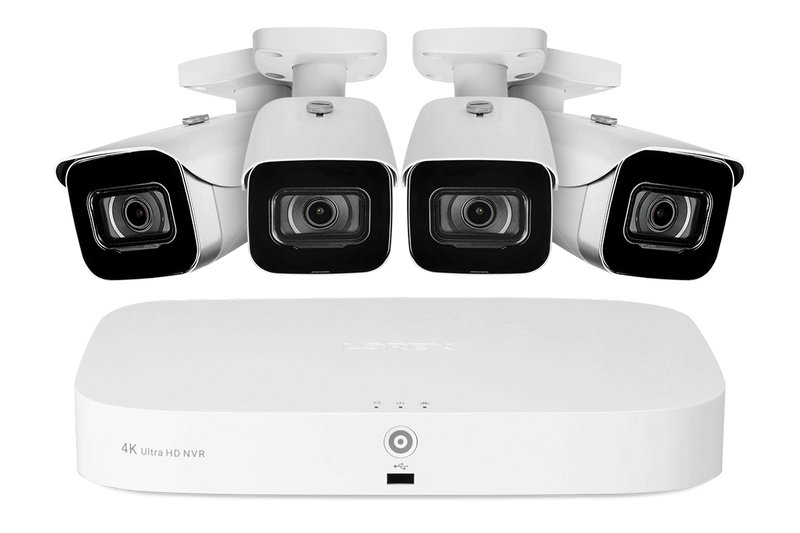

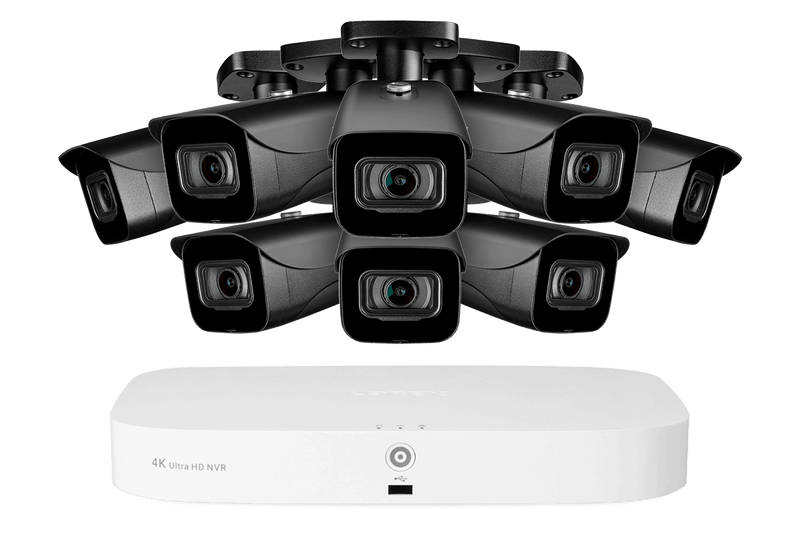

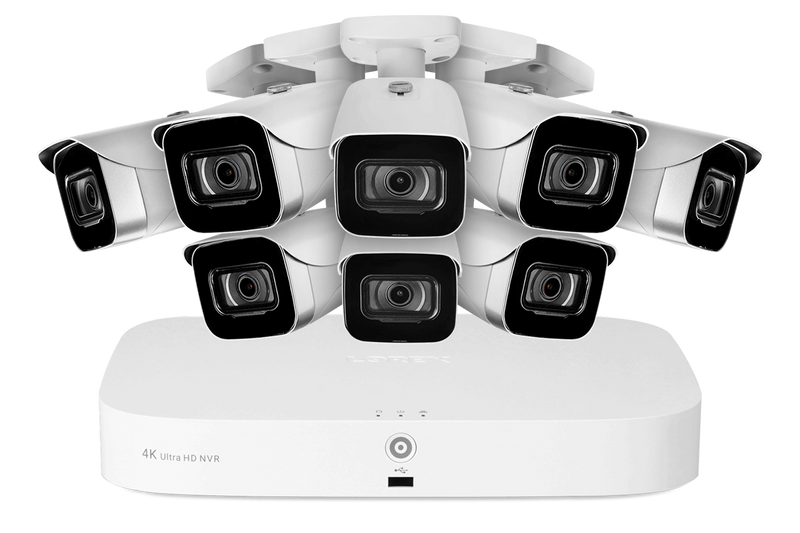

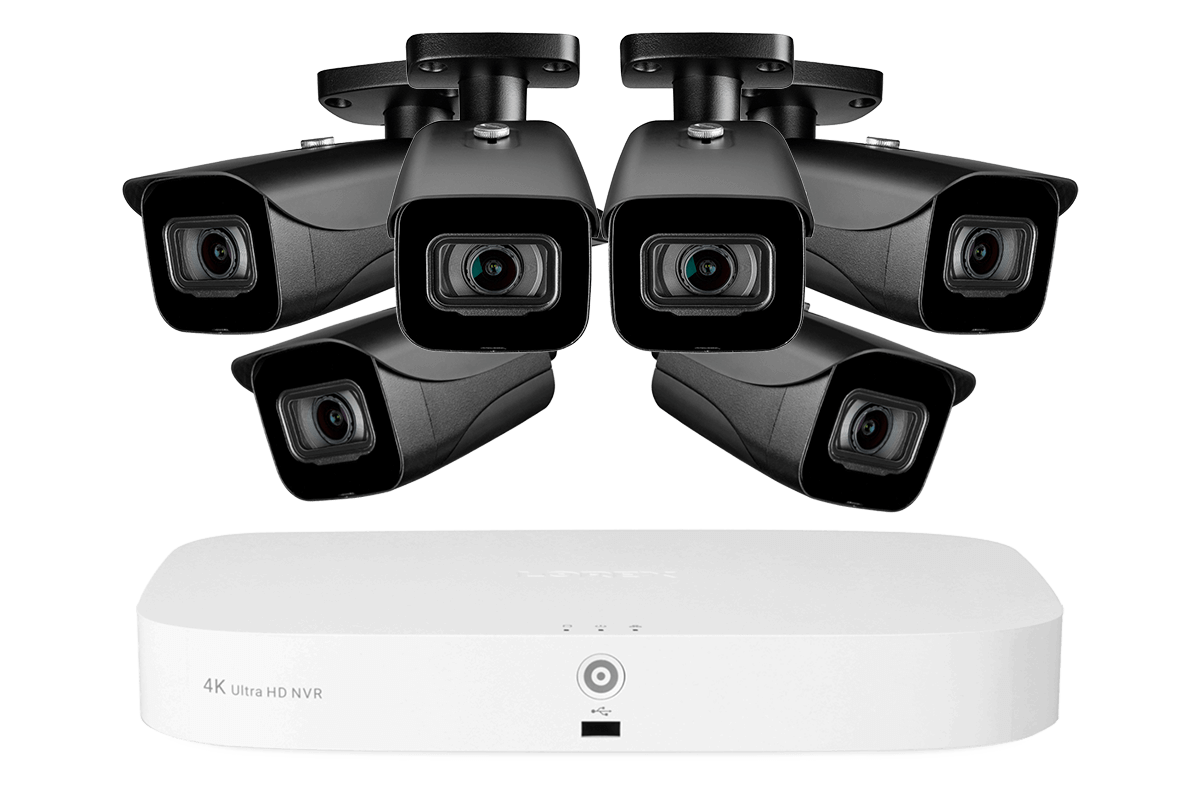

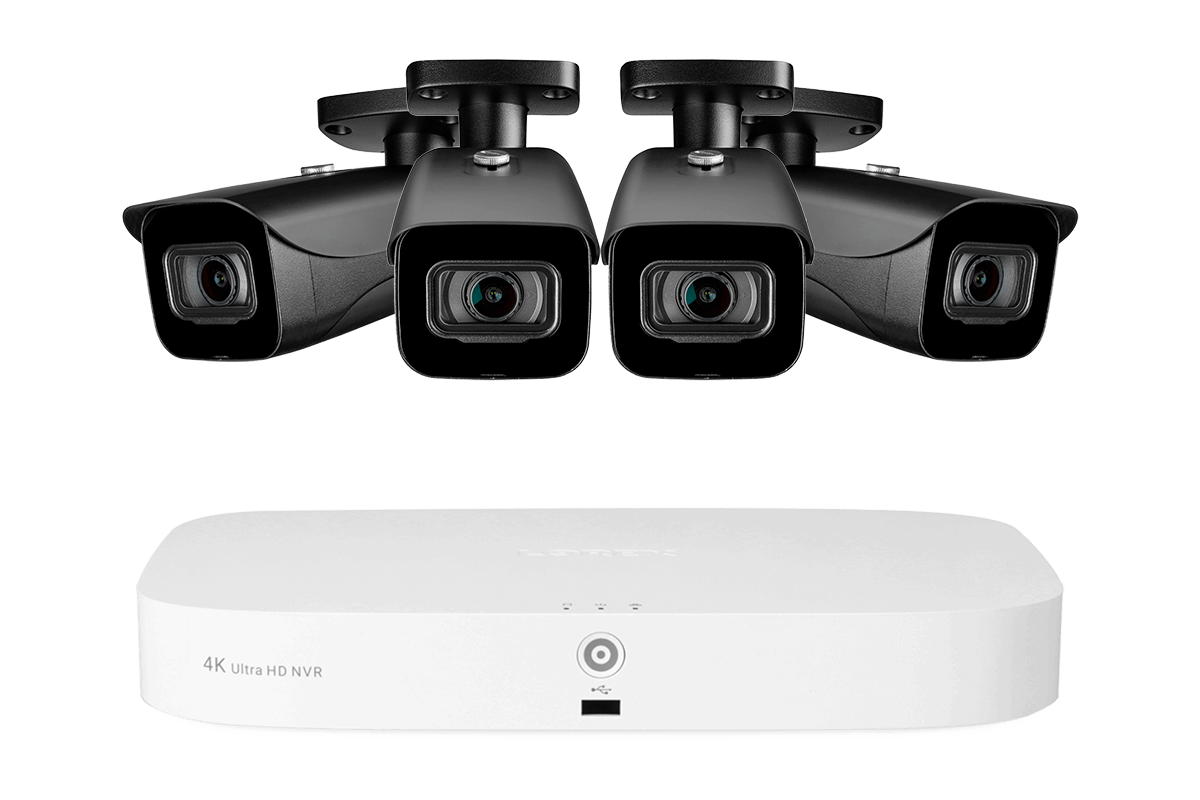

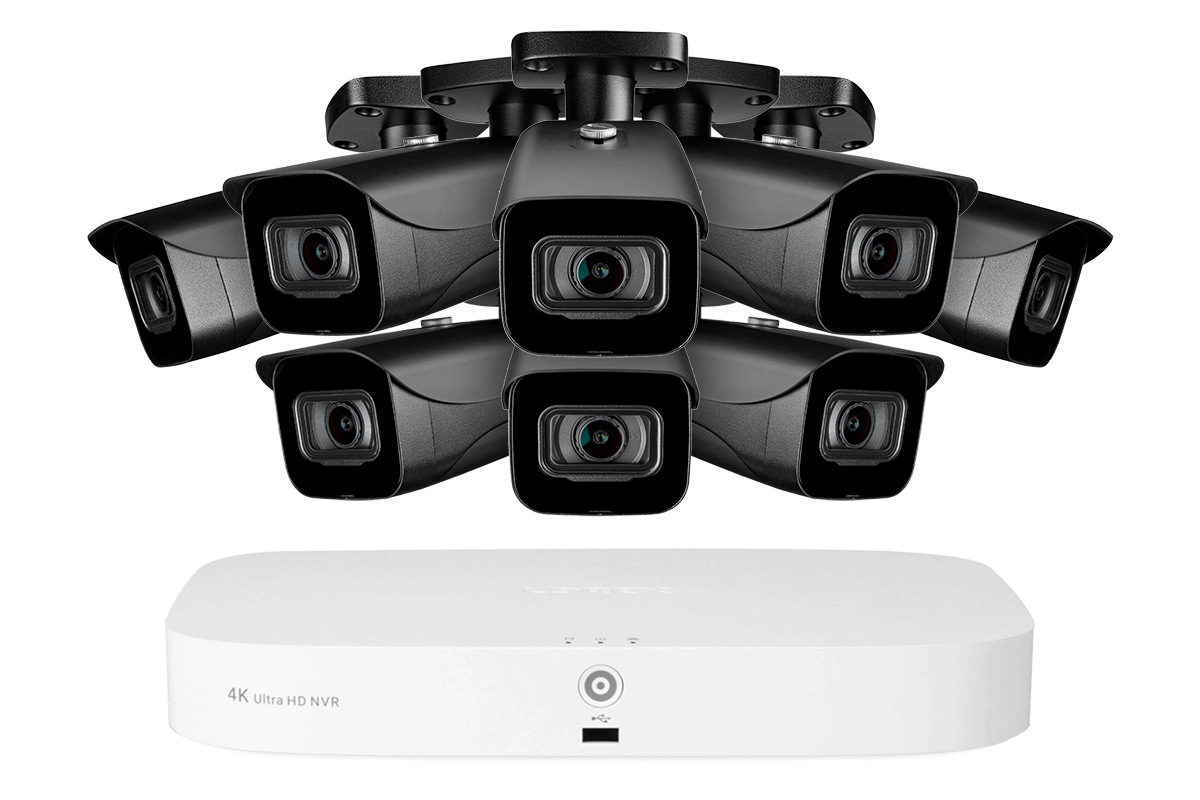

Lorex 4K (8 Camera Capable) Fusion NVR System with IP Bullet Cameras

N4K2-84BB-1
Number of cameras:
Color:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

bi-ecology

No Monthly Fees

Local recording protects privacy and saves money.

Features

Featuring industry-leading 4K (8 megapixel) resolution recording, this security camera system from Lorex will bring a whole new level of detail to your monitoring. It includes an 8-channel Fusion Series Network Video Recorder (NVR) and four 4K IP bullet security cameras. Whether you are looking to protect your home or small business, this powerful security camera system will help you secure the things that matter most.

4K NVR System

SPECIFICATIONS

8

CHANNELS

4K NVR can support up to 8 cameras

4K

RESOLUTION

4× the resolution of HD 1080p

130FT

NIGHT VISION

Maximum night vision range

2TB

HARD DRIVE

Expandable up to 8TB

lorex Cloud app icon

Works With
Lorex™ App




Expand your system with the Fusion Collection

The Lorex Fusion Collection is a set of Network Video Recorders (NVRs) and Wi-Fi devices that are united by our Lorex Home App. Working together, the NVR can essentially "fuse" together Wired and Wi-Fi systems!


Network Video Recorders


Wi-Fi Devices


Lorex Home App

For more information, please visit our Fusion Collection Guide.


4K security monitoring


4K sharpness gets you the details you need

Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video, realistic color representation and superior digital zoom capabilities.

Color Night Vision security camera

See in color through the night

With Lorex's exclusive Color Night Vision™ you'll be able to see full color images in low-light conditions. CNV gives you more detailed video footage and realistic images true to their original form (such as the color of cars or clothes). It also provides increased contrast for easier detection and recognition.

Infrared Night Vision security camera

Long-range IR night vision

In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.




Built to Last

Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.



E581CD-E

E841CAB

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

Water Rating

IP67

Water Rating
High Dynamic Range

High Dynamic
Range (HDR)

HDR improves video clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image.

HEVC Compression

High Efficiency
Video Coding (HEVC)

HEVC compresses video file sizes without any noticable difference in quality, which will save you lots of hard drive space.

Metal housing

Full Metal
Exteriors

Heavy-duty aluminum exteriors add extra protection against vandalism and the elements, extending the life-cycle of the cameras.

Power Over Ethernet

Easy PoE
Installation

IP cameras only need a single Cat5e ethernet cable to connect it to a compatible NVR for video, power and a stable network connection.

Remote viewing from your mobile with Lorex™

This NVR is designed for use with our innovative Lorex™ app. Using this app, you can quickly view your security system remotely and control camera features from your smartphone. The app will also send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.


Lorex Sensor Kit and Lorex Home App



Add A Sensor Kit!

The Lorex Sensor Hub also uses the Lorex Home App, allowing you to seamlessly integrate Add-On Sensors into your home security.

Motion Sensor

Video-Free

Real-time sensor alerts

Instant Alerts

link sensors with wifi cameras

Sensor Linking*






*Link individual sensors to another Wi-Fi camera connected to the Lorex Home App. N842, N843, N844, N862, N863, D861, D862, D871 Series recorders also support sensor linking to a wired camera through the Lorex Home App. Lorex Sensor Hub Compatibility




Smart home compatibility

Get faster access to your security system by connecting it to your other Smart Home devices. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. Or download the Lorex app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.


*Requires Gen 4 or newer Apple TV with support for App Store



Reliable security grade hard drive with no hidden storage fees

Included in the NVR is a built-in security-grade hard drive that has been designed to meet the demands of 24/7 surveillance recording. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store all motion events that only you can access.

detection zones

Regional
Motion Zones

The NVR can program specific motion zones for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").

Privacy Mask

Privacy
Masking

In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.

Area Search

Easy Area
Search

Find what you are looking for quickly with Lorex's Area Search. Using the NVR, select an area of interest to automatically playback any video footage showing scene changes in that area




What's Included?

V261LCD Overview

Dimensions (WxDxH): 2.8" x 7.1" x 2.8" (70mm x 180mm x 70mm)
Weight: 1.15lbs / 0.52kg

Package Contents:

4K IP Bullet Camera

Mounting Kit

Cat5e Ethernet Cable

Quick Start Guide


  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 105° field of view
  • HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
  • Weatherproof rated (IP67)2
  • Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
  • Aluminum Alloy housing, designed to withstand harsh weather conditions
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
  • Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4
  • A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.

N843A82

4K Ultra HD FusionNetwork Video Recorder

back-to-top
N843 dimensions
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all channels.1
  • Digitally zoom in on distant objects for better clarity.2
  • View synchronized playback of up to 4 cameras at the same time
  • Expand your security system with up to 8 IP cameras with built-in PoE ports.
  • Pair your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, doorbells, floodlights, and more.3
  • Stream and record continuous video from your Wi-Fi devices on your recorder.
  • Wi-Fi cameras can now record continuously, taking advantage of the hard drive storage space.
  • Quickly access your live footage with simple voice commands, compatible with Amazon and Google.4
  • Control your Active Deterrence cameras features with your voice (compatible with Google Assistant only).4
  • Support for Smart Motion Detection - Get notifications with the Lorex Home™ App when motion is detected from a person or vehicle. Be notified when a person is not wearing mask.5
  • Use Smart Search to search through recorded footage and filter events for motion detected by person, vehicle or face.6
  • Max 8TB storage space with no hidden monthly cloud fees.
  • Security Grade hard drive designed for advanced processing and the workload of 24/7 monitoring.
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place.

Each N843A82 Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick Setup Guide
  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
