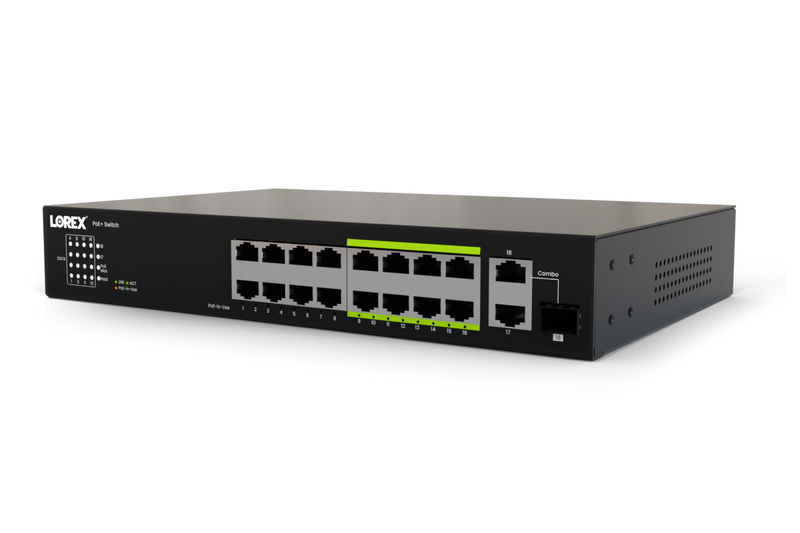

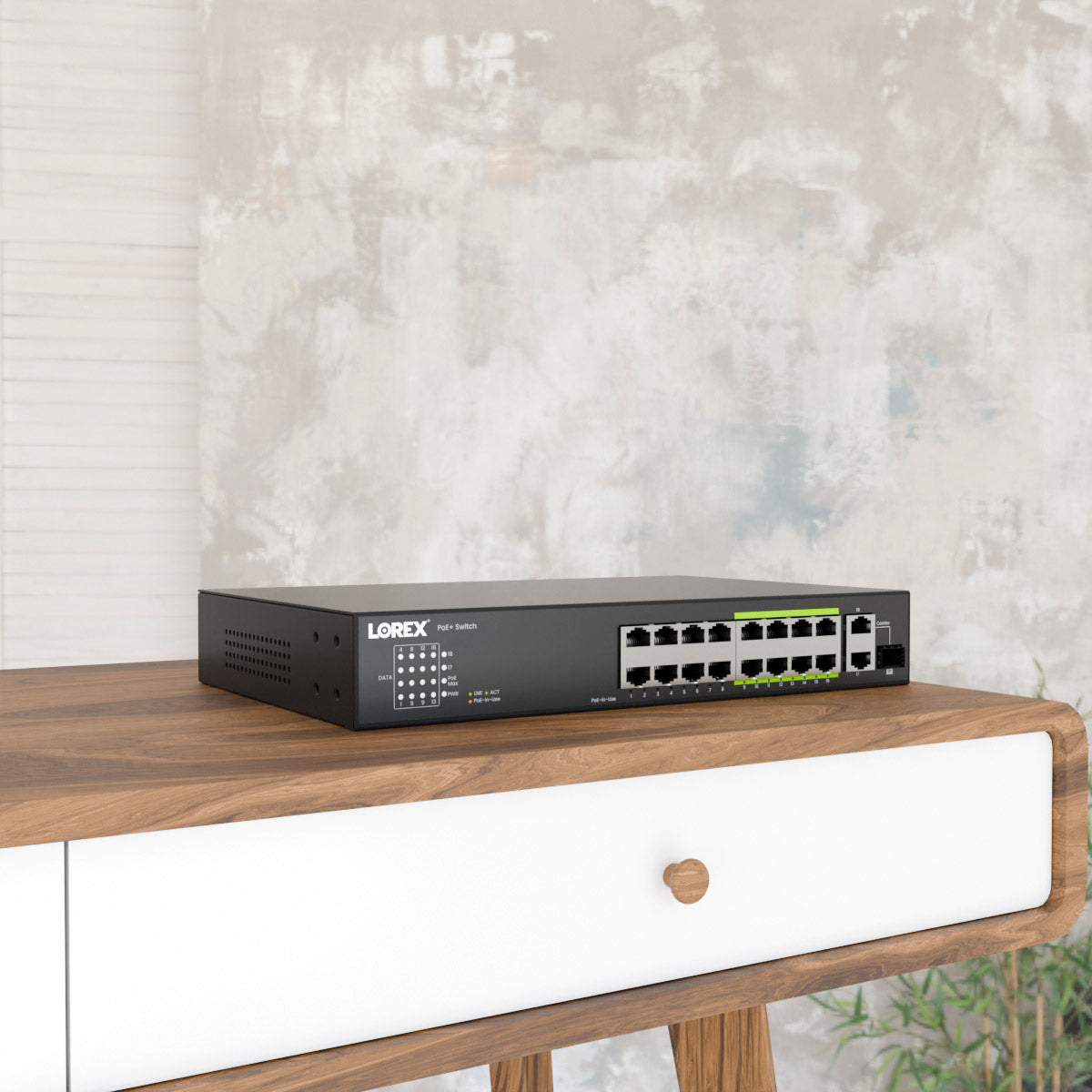

16-Port Unmanaged Switch (8-port ePoE and 8-port PoE+) and 250W Power Budget
$339.99
Features
Expand the reach and simplify the cabling of your NVR security camera system with this 16-Port PoE switch
(8-port ePoE and 8-port PoE+).
ECO-FRIENDLY
Less power consumption
ECONOMIC
Cost-effective (no need for multiple switches)
EXTENDED
Long-range transmission (up to 600m) / 250W Power Budget
Cut Costs, Reach Farther
Sick of cutting cables and installing multiple switches? We’ve got you covered
This innovative ePoE switch eliminates the need for multiple switches when connecting distant security cameras. With extended power delivery over a single cable, you can power your cameras directly from the switch, saving money on additional hardware and reducing overall power consumption.
Powerful 250W PoE+ switch
This PoE+ switch can handle an output up to 30 watts of power from the PoE ports, with a total output of 250W. Considering that our average cameras use less than 6W, you can efficiently power up to 16 cameras with this 16-port switch, utilizing the full 250W capacity.
Flexible Surveillance System Design
Use this PoE switch to extend the distance of your cameras from your recorder. With ePoE support up to 600m/2000ft, this switch allows for more flexible surveillance system design, improves reliability, and saves on construction and wiring costs.*
*ePoE Security Cameras, like Lorex's Nocturnal 4 Cameras, are required for cable runs over 100m/328ft.
Option 1: Data + Power Hi-PoE
|
Up to 100m (328ft)
Network Cable
|
PoE IP Camera
|
Option 2: Data + Power IEEE
|
|
Up to 100m (328ft)
Network Cable
|
PoE IP Camera
|
Option 3: Data + Power E100 (Max. bandwidth: 100Mbps)
|
|
Up to 300m (984ft)
Network Cable
|
|
ePoE IP Cameras LNB9383 / LNB9393 LNE9383 / LNE9393 |
Option 4: Data + Power E10 (Max. bandwidth: 10Mbps)
|
|
Up to 600m (2,000ft)
Network Cable
|
|
ePoE IP Cameras LNB9383 / LNB9393 LNE9383 / LNE9393 |
SFP Port: Expand Your Network with Fabric Cables
An SFP port is also available for you to connect this PoE switch to another switch or network device using a high-speed fabric cable. This provides a faster and more reliable connection for your devices.
Product Compatibility
Product Specifications
| Interface |
16 × 10/100Mbps RJ45 ports 1 × 1000Mbps Combo port 1 × 10/100/1000Mbps Uplink port |
|---|---|
| Standard |
IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| PoE Ports | 1 to 16 |
| ePoE Ports | 9 to 16 (Up to 600m) |
| Total PoE Power | 250W |
| Power Supply | 260W |
| Max PoE Port Outputy | 30W |
| Indicators | PWR (Green), LNK/ACT (Green), PoE (Orange) |
| Network Media |
10BASE-T: UTP Cable (≤100m) 100BASE-TX: UTP Cable (≤100m) 1000BASE-T: UTP Cable (≤100m) 1000BASE-X: MMF, SMF |
| MAC Address Table | 8K, Auto-learning, Auto-aging |
| Jumbo Frame | 9K Bytes |
| Packet Buffer | 4M bit |
| Transfer Mode | Store-and-forward |
|---|---|
| Packet Forwarding Rate | 5.36Mpps |
| Bandwidth | 7.2Gbps |

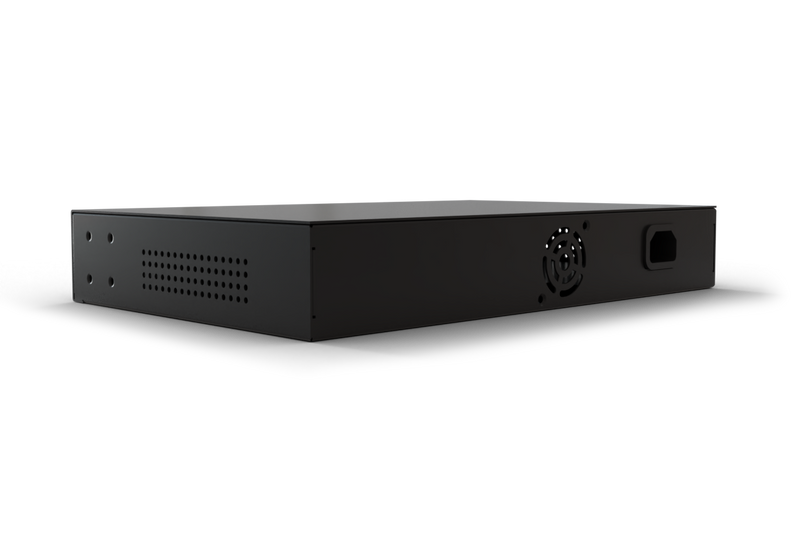

| Fan | 1 fan |
| Product Dimensions (L × W × H) | 11.02 × 7.09 × 1.73” / 280 × 180 × 44 mm |
| Green Energy Saving | N/A |
| Voltage Input | 100 to 240 VAC, 50/60Hz |
| Operating Temperature | 32 °F to 104 °F / 0 °C to 40 °C |
| Storage Temperature | -40 °F to 158 °F / -40 °C to 70 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Surge Protection |
Common mode ± 4KV, Differential mode ± 2KV |
| Certifications | FCC, IC, CE, UKCA |
| MTBF | > 100000 hours |
| Electrostatic Standard | Contact ± 6KV, Air ± 8KV |
What's Included?
Package Contents:
PoE Switch
Power Cord
4 × Rubber Feet
2 × Rack Mount Brackets
8 × Screws
SFP Dust Cap
