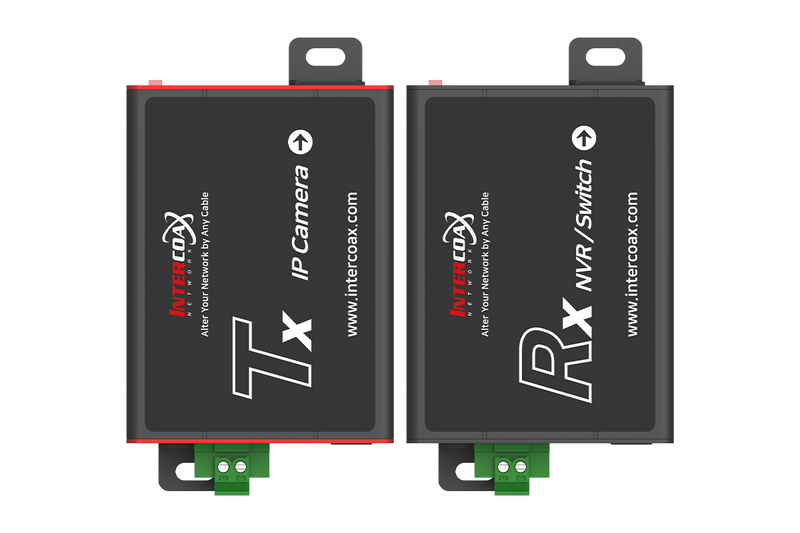

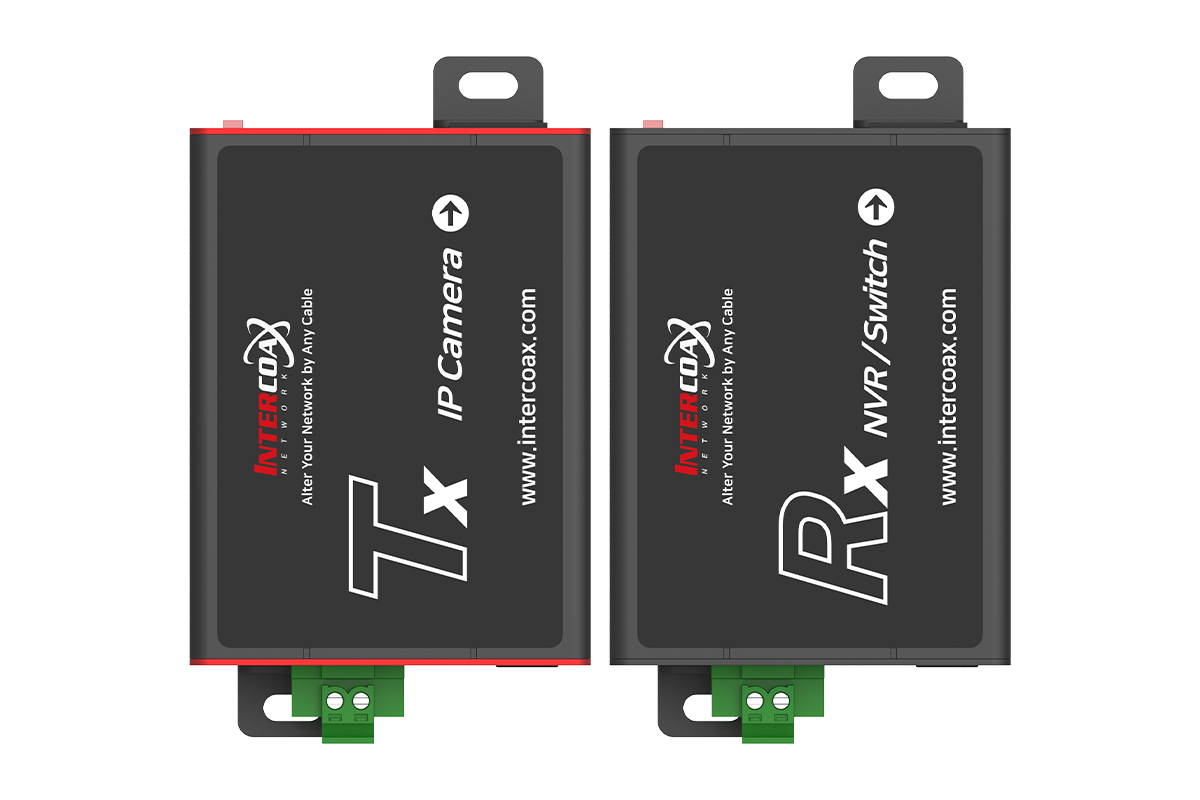

Professional Single Port IP & PoE over 2-Wire Set (600m/2000ft end-to-end converters)
$999.99
Features
Data + PoE
over Any 2-Wire
600m (1970ft)
Long Range
PoE from NVR
to IP Camera
Twisted or Untwisted
2-Wire
Solid or Stranded
2-Wire
60W
PoE++
Surge / Short
Protection
Simplified
Installation
Cost
Saving
The ETP-2601 is a high-speed, long-distance Ethernet & PoE extender that enables the transmission of Ethernet signals and PoE via 2-Wire cable (twisted pair cable, COM, power line) in various situations. It offers a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ETP-2601 supports easy installation using existing cables. With its long-distance transmission capability, this device easily overcomes the 100-meter distance limitation and significantly reduces construction costs compared to fiber optic configurations.
Connection Diagram
Additional installation of IP cameras on current system
Enhance Elevator Surveillance with ALP-ETP-2601TR: The Premium Ethernet over 2Wire Solution
The ALP-ETP-2601TR Premium Ethernet over 2Wire is the ideal choice for elevator surveillance, offering a cost-effective, efficient solution for camera installations. Utilizing existing two-wire cabling, it reduces installation costs and logistical challenges, ensuring high-speed data transmission and reliable connectivity. Perfect for retrofitting older buildings, it guarantees stable, uninterrupted data transfer for high-quality surveillance footage. Its robust performance and adaptability in confined spaces enhance security and monitoring capabilities in elevator environments, making it the best solution for elevator surveillance needs.
Product Compatibility
Product Specifications
| Model | ETP-2601T | ETP-2601R | |
|---|---|---|---|
| Interface | |||
| 2-Wire | 1 x 2-Pin Terminal Block-Ethernet over 2-Wire (T-LinX) | ||
| Ethernet | 1 x RJ45 - 10/100 Base-T with Auto-detect MDIX | ||
| Transmission Rate |
95Mbps Full Duplex (270Mbps between Intercoax 2 series models) |
||
| Transmission Distance | |||
| 2-Wire | up to 600 m(Twisted Pair Cable/Cat.5e) | ||
| PoE (PoC) | up to 300 m (Cat.5e / 7W camera) | ||
| LED Indication | Ethernet | 1 x Data-Link (Yellow) | |
| EoC | 1 x Join-Link (Green) | ||
| Power | 1 x Power On(Amber) | ||
| PoE | 1 x PoE Out (Red) | ||
| Encryption | 128-bit AES | ||
| Model | ETP-2601T | ETP-2601R | |
|---|---|---|---|
| Power | |||
| Input | T-Linx or DC12V~57V | PoE Switch or DC48V~57V | |
| PoE Output |
IEEE802.3af(PoE), IEEE802.3at (PoE+), Extra PoE up to 60W |
PoE Not Supported Power Over 2-Wire Only |
|
| PoE Input | Not Supported | Up to 25.5W (PD) | |
| Mechanical | |||
| Dimension | 80.4(L) x 61.6(W) x 24(H)mm | ||
| Weight | 102g | ||
| Environment | |||
| Operating Temp | -20 ~ 60°C | ||
| Storage Temp | -30 ~ 80°C | ||
| Relative Humidity | 10% ~ 90% | ||
| Compliance | |||
| Certification | FCC, CE, KC, RoHS | ||
| Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) | ||
What's Included?
Package Contents:
ETP-2601T
(Transmitter)
ETP-2601R
(Receiver)
Terminal Connector
Bracket x 2
Screw x 4
Manual
