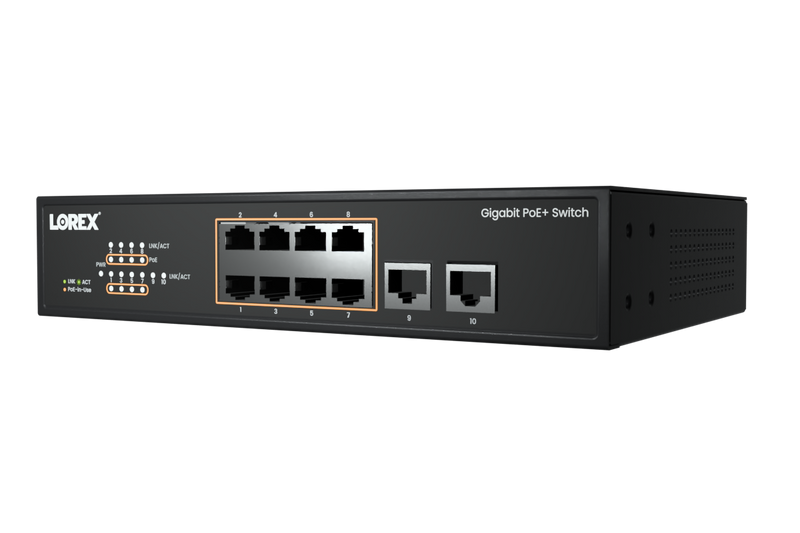

8-Port Ethernet Gigabit Ethernet PoE+ Unmanaged Switch with 120W PoE Budget
$139.99
Features
Expand the reach and simplify the cabling of your NVR security camera system with this 8-Port Gigabit Ethernet PoE+ Unmanaged Switch.
Plug, Play, Power: Unmanaged PoE Switch
Unmanaged PoE switches offer a hassle-free solution with reliable power delivery. No complex setup required – simply plug it in and connect your PoE security cameras.
Powerful 120W PoE+ switch
This PoE+ switch can handle an output up to 30 watts of power from the PoE ports, with a total output of 120W. Considering that our average cameras use less than 6W, you can efficiently power up to 8 cameras with this 8-port switch, utilizing the full 120W capacity.
Flexible Surveillance System Design
Use this PoE switch to extend the distance of your cameras up to 100 meters (328ft). Additionally, you can power other IP devices like video phones, VoIP phones, access points, and repeaters.
Gigabit PoE: Essential Speed for Today's Security Cameras
This Gigabit PoE switch ensures smooth streaming of high-resolution footage, flawless operation of smart functions, and future-proofs your system for demanding security needs.

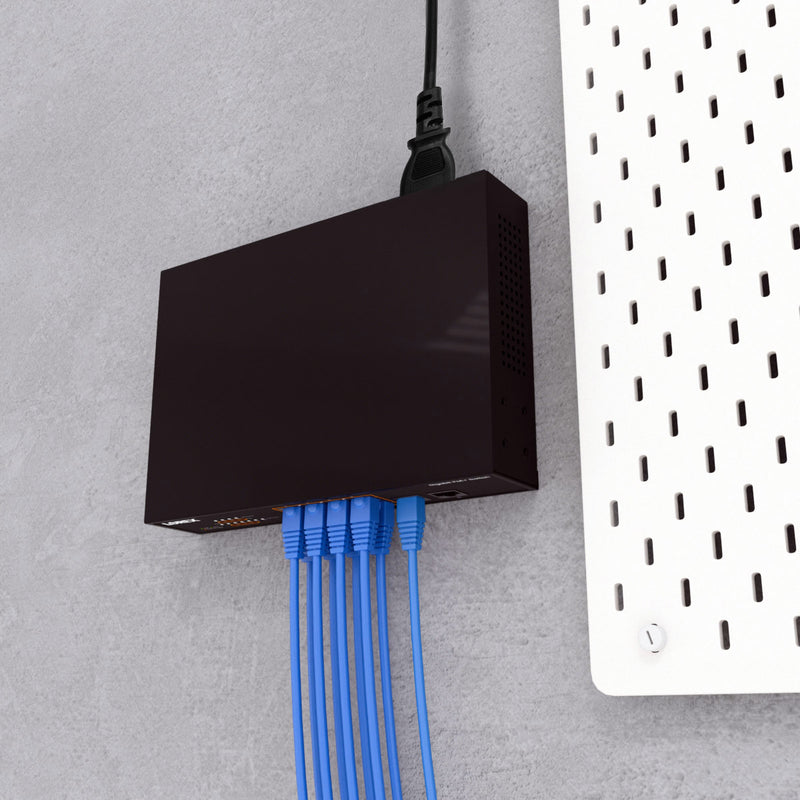

Quick and Easy Mounting
Easily mount this PoE+ switch flush against a wall or on a server rack using its built-in mounting holes, ensuring a clean, organized, and aesthetically pleasing setup.
Product Compatibility
Product Specifications
| Interface | 10 × 10/100/1000Mbps RJ45 ports |
|---|---|
| PoE Standard | IEEE802.3af/at |
| PoE Ports | 1 to 8 |
| Total PoE Power | 120W |
| Power Supply | 130W |
| Max PoE Port Outputy | 30W |
| Indicators | PWR (Green), LNK/ACT (Green), PoE (Orange) |
| Network Media |
10BASE-T: UTP Cable (≤ 100m) 100BASE-TX: UTP Cable (≤ 100m) 1000BASE-T: UTP Cable (≤ 100m) |
| MAC Address Table | 2K, automatic study, automatic updates |
| Jumbo Frame | 9K Bytes |
| Packet Buffer | 2M bit |
| Transfer Mode | Store-and-forward |
| DimePacket Forwarding Rate | 14.88Mbps |
| Bandwidth | 20Gbps |
| Fan | 1 fan |
|---|---|
| Product Dimensions (L × W × H) | 8.66 × 5.90 × 1.73” / 220 × 150 × 44 mm |
| Green Energy Saving | Support IEEE802.3az |
| Voltage Input | 100 to 240 VAC, 50/60Hz |
| Operating Temperature | 32 °F to 104 °F / 0 °C to 40 °C |
| Storage Temperature | -40 °F to 158 °F / -40 °C to 70 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Surge Protection |
Common mode ± 4KV, Differential mode ± 2KV |
| Certifications | FCC, IC, CE, UKCA |
| MTBF | > 50000 hours |
| Electrostatic Standard | Contact ± 6KV, Air ± 8KV |
What's Included?
Package Contents:
PoE Switch
Power Cord
4 × Rubber Feet
2 × Rack Mount Brackets
8 × Screws
