$179.99
Features

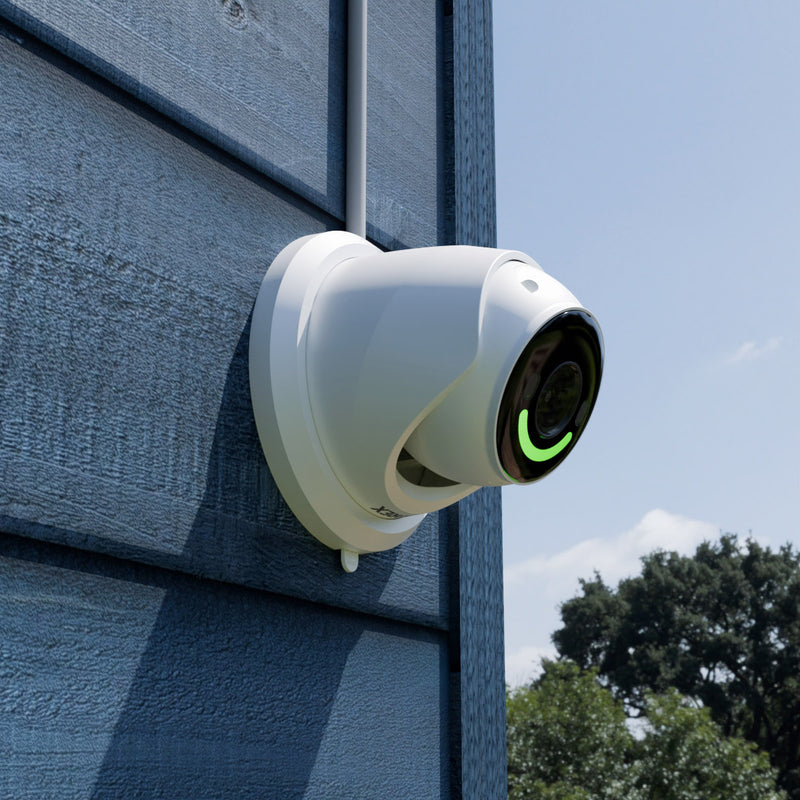

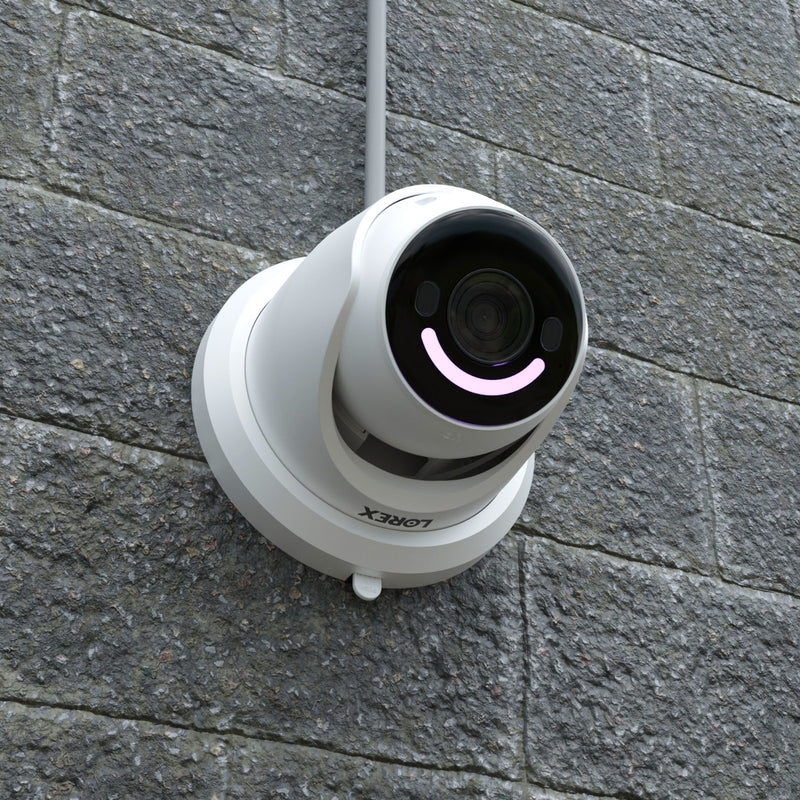

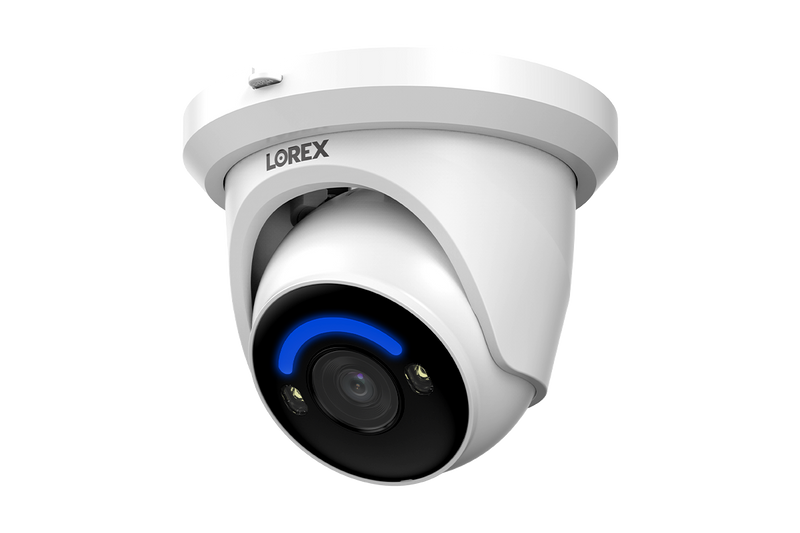

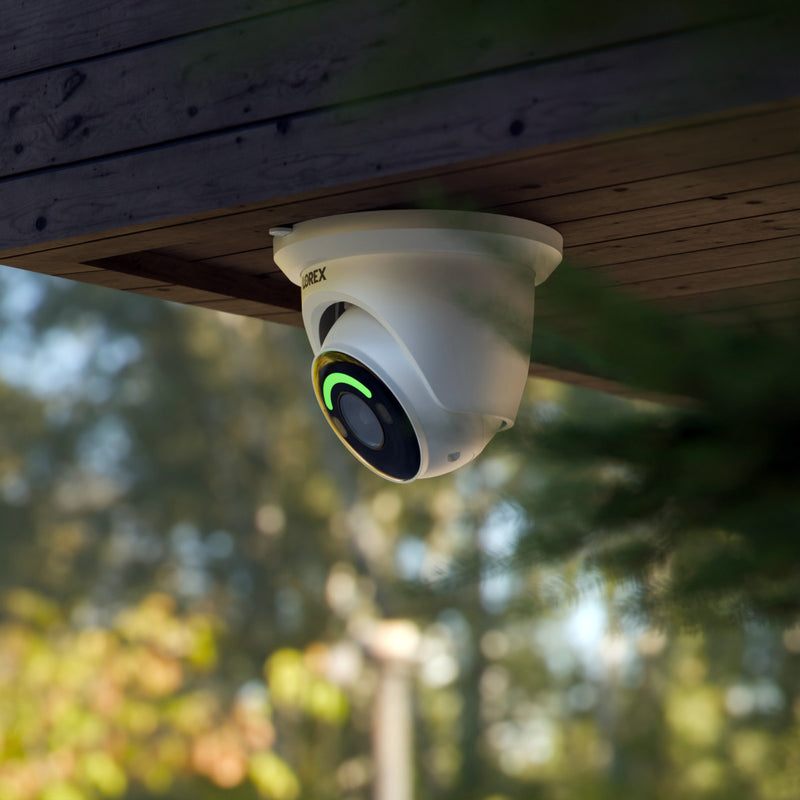

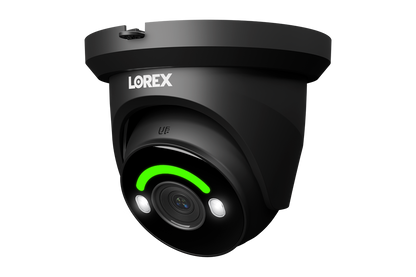

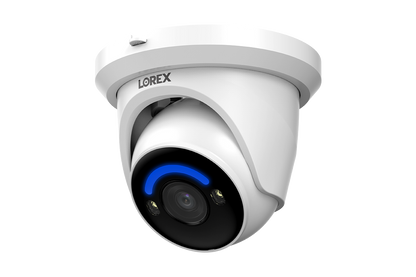

Introducing a premium security camera with all the features you need to protect your property - The Lorex 4K IP Wired Dome Security Camera, a perfect addition to your NVR security system.
Resolution
Smart Security
Lighting
Color Night
Vision
IP67
Weatherproof
2-Way
Talk
Person and Vehicle
Detection
Capture the details you need
4K recording can make all the difference. It provides an exceptionally high level of clarity to help you capture important details while also improving post-recording digital zooms.
4K Resolution
Don’t lose any details at night
Lorex’s Color Night Vision (CNV) delivers full-color video in low-light situations, so you don’t miss any visual details. CNV works best with plenty of ambient lighting, but not to worry, in total darkness, this camera will use its powerful infrared LEDs for crisp black and white footage.
Color Night Vision
Black & White (IR) Vision
Proactive Security
Stay one step ahead and stop events before they happen with the motion-activated warning lights and siren.
Dual Warning Lights
Siren
Smart Motion Detection (Person and Vehicle)
Person and vehicle detection helps identify and categorize motion events. It also limits the number of motion alerts sent to your smartphone to only detections caused by people of vehicles.
Person Detection
Vehicle Detection
Answer Instantly
Communicate with a tap of a button, thanks to pre-recorded Quick Response Messages.
Quick Response
2-Way Talk
All season security
Our highest weatherproof rating (IP67) and its extreme temperature tolerance ensures this camera delivers year-round coverage for years to come.
140°F | 60°C Heat Rating
-40°F | -40°C Cold Rating
IP67 Weatherproof
Wired Reliability
Enjoy the reliability that a wired security camera has to offer. Connect this camera to a compatible NVR for a stable camera connection, 24/7 continuous recording and the ability to record without internet.
Product Compatibility
Product Specifications
| General | |
|---|---|
| Video Transmission Technology | IP |
| Image Sensor | 1/2.7” CMOS |
| Video Format | NTSC |
| Video Compression | H.265/H.264 (Main Stream & Sub Stream) |
| Optical | |
|---|---|
| Viewing Angle (H ×V ×D) | 106° × 56° × 125° |
| Lens/Lens type | 2.8mm F2.0 / Fixed |
| Video Output | |
|---|---|
| Resolution / Frame Rate | 4K/8MP@15fps, 5MP@30fps, 1080p@30fps, 720p@30fps |
| Effective Pixels | 3840 (H) × 2160 (V) |
| HDR | Yes |
| Network Port | RJ45 |
| Audio | |
|---|---|
| Microphone / Speaker | Yes / Yes |
| Siren | Yes (Siren sound options available) |
| Two-way Talk | Yes |
| Night Vision | |
|---|---|
| IR Night Vision Range | 98.43 ft / 30 m |
| Color Night Vision | Yes |
| Special Features | |
|---|---|
| Smart Motion Detection | Yes - Person and Vehicle Detection |
| Detection Types | Vehicle, Person |
| Supports in App Quick Messaging | Yes |
| Active Deterrence | Yes - Warning Light + Siren + Pre Recorded Message |
| Smart Security Lighting | Yes |
| Additional Specifications | |
|---|---|
| Camera Housing Material | Aluminum Alloy |
| SD Card Slot | Yes* |
| Power Requirements | PoE (Power over Ethernet Class -802.3af) / 12V DC |
| Power Consumption (max) | 9.6W (DC12V), 11W (POE) |
| Camera Dimensions (W × H) | 5.6 × 4.7” / 142 × 119 mm |
| Camera Weight | 1.51 lbs / 0.68 kg |
| Operating Temperature | -40 °F to 140 °F / -40 °C to 60 °C |
| Humidity | ≤ 95% RH |
| Environmental Rating | IP67 (Indoor/Outdoor) |
*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
What's Included?
- Ethernet Connector
- 12V DC Power Connector
- Mounting Bracket
- Cable Notch
- MicroSD Card Slot
- Reset Button
- Speaker & Siren
- Smart Security Lighting
- Microphone
- Warning lights (2×)
- Camera Lens
- IR Sensor
Package Contents:
4K Dome Camera
Mounting Kit
Mounting Bracket
Product Support
E863SD Series - 4K Deterrence Dome AI PoE IP Wired Camera
