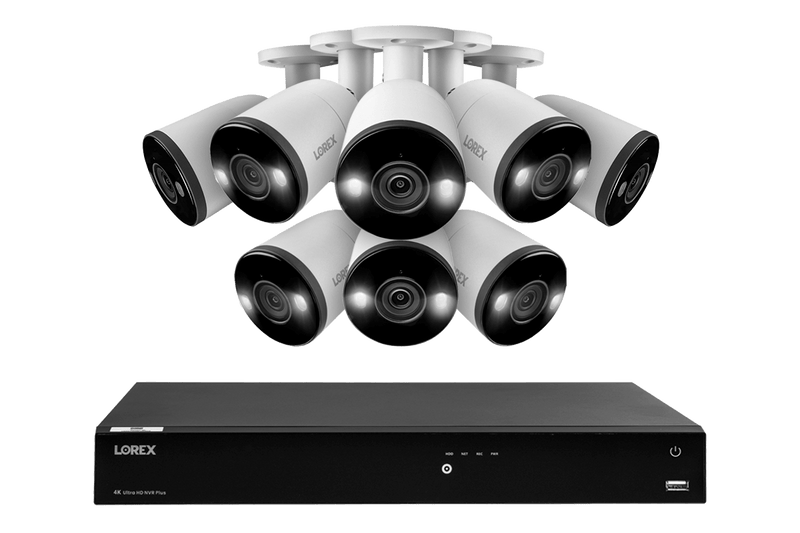

Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 8 Bullet Cameras Featuring Smart Deterrence and Two-Way Talk

Roll over image to zoom in Click on image to zoom

Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 8 Bullet Cameras Featuring Smart Deterrence and Two-Way Talk

Name: Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 8 Bullet Cameras Featuring Smart Deterrence and Two-Way Talk
Brand: Lorex Retail
SKU: N86464-8AB8
Price: 999.99 CAD
Availability: OutOfStock

N86464-8AB8

Share this product

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Stop events before they happen with this Smart Deterrence 4K Fusion NVR system. This system, with 4K IP bullet cameras featuring motion activated spotlights, a warning siren, and two-way audio will help you protect any home or small business. The included Fusion NVR is also unlike any other recorder on the market. It can connect a total of 16 wired IP cameras and Smart Home wireless cameras (like Wi-Fi cameras and video doorbells), giving you unprecedented versatility in creating a perfectly tailored security ecosystem for your property.

Ultra HD Resolution

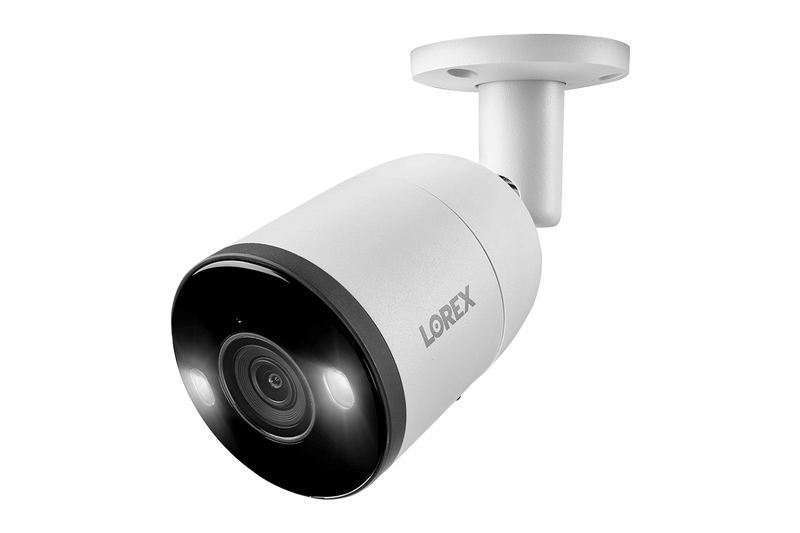

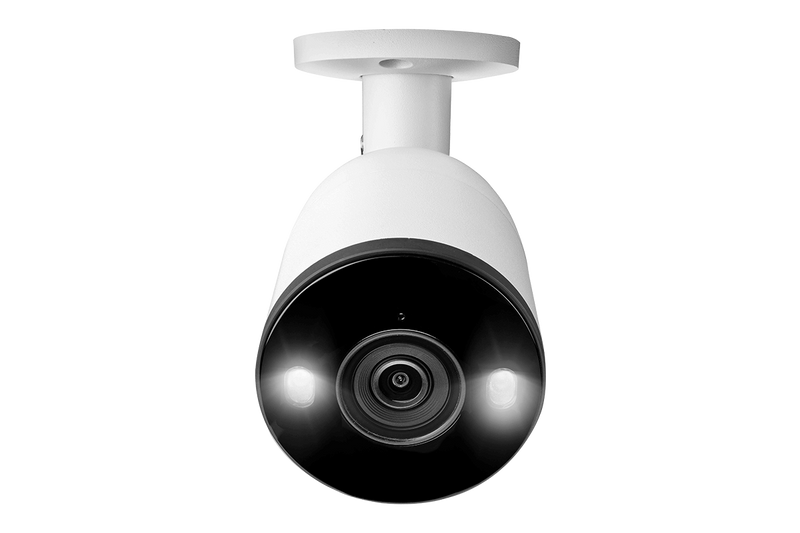

At the core of this camera is an 8MP image sensor. 8MP means there are more than 8 million pixels, which results in exceptionally sharp 4K video, realistic color representation, and superior digital zoom capabilities.

Color Night Vision

Experience the best night vision on the market. This camera features our revolutionary Color Night Vision (CNV), which produces our most vivid and longest range full-color nighttime video yet.

Filter smart motion events with the Lorex app

Smart Motion Detection Plus with Safeguard

Limit motion detection notifications with Smart Motion Detection Plus. This feature offers the option of either Face Detection or Person and Vehicle Detection. Lorex's Safeguard technology is perfect if you have very specific objects or areas that you need to monitor.

Face and Mask
Detection

Face Detection with Mask Detection Technology will only notify you of motion events when a face has been detected or when a person is not wearing a mask.

Person and Vehicle
Detection

With Smart Person and Vehicle Detection, you will only get a push notification whenever a person or vehicle is detected on your property.

Safeguard - Missing and Left Behind

Safeguard lets you designate up to three "Missing" areas and one "Left Behind" area. The Missing feature notifies you if important items are taken from the specified area, while the Left Behind feature alerts you when something is added.

Speak with Ease

Easily communicate through the camera’s built-in microphone and speaker using the Lorex App. You can also choose pre-set or personalized voice messages to welcome or instruct visitors.

Microphone

Speaker

^{*Please note, audio recording without consent is illegal in certain jurisdictions. Lorex assumes no liability for the use of its products that do not conform with local laws.}

Built for the outdoors

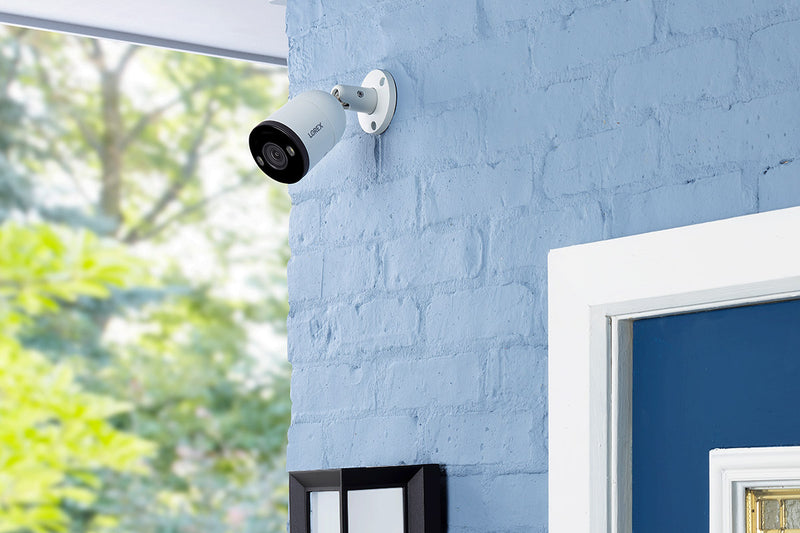

Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.

140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof

Proactive Security

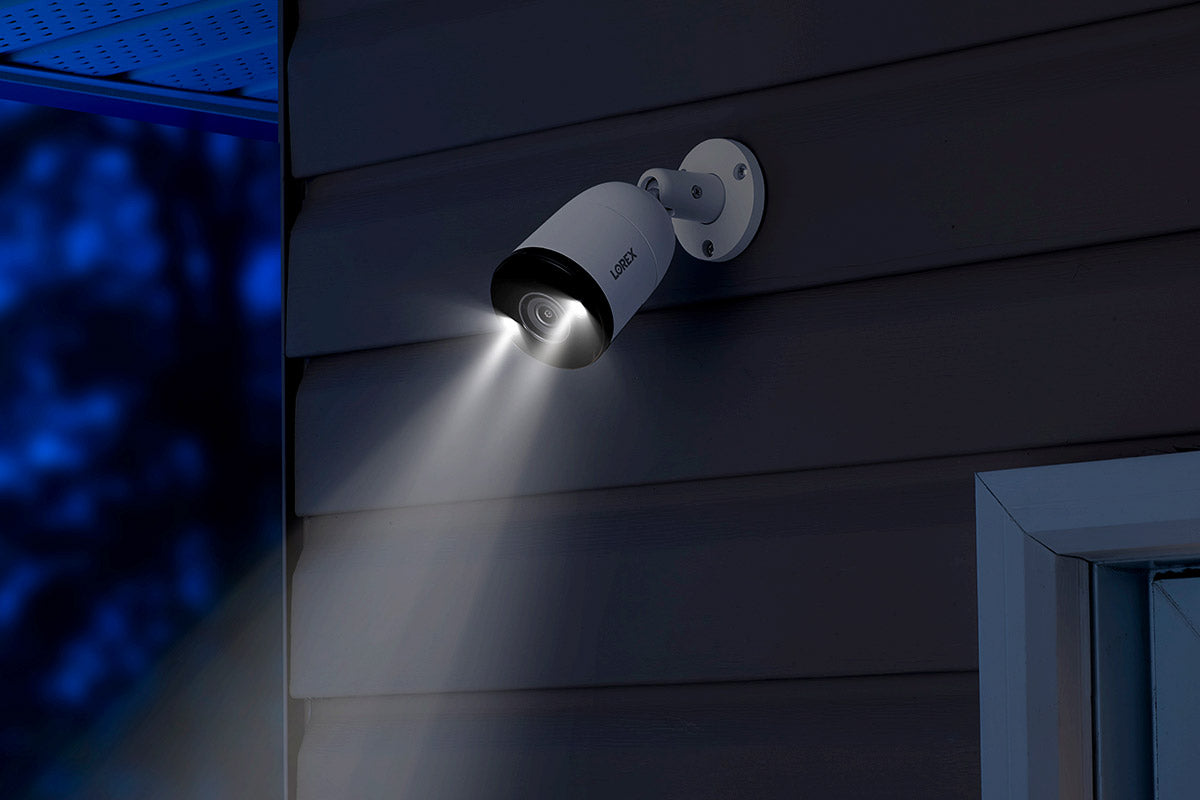

Get an added layer of security with the motion-activated LED warning lights and remote-triggered siren to deter uninvited visitors.

Motion-activated LED lights

Remote-activated siren

Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

Same Look - Home or Away

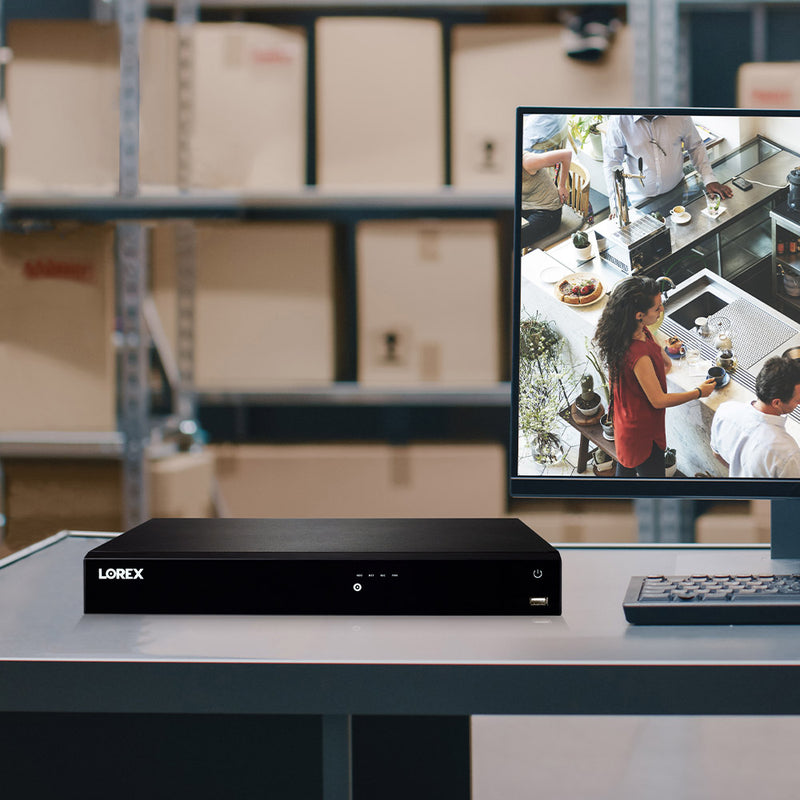

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.

Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 16 wired or Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.

Get Support for Lorex Fusion How to set up Fusion System

All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.

*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.

Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 4TB hard drive, you will have ample storage, while your recordings stay safe and private.

What is the included PoE switch for?

The 32-channel NVR supports up to 32 security cameras but only has 16 built-in PoE ports on the back. This is why a PoE switch has been included in this system. By connecting this PoE switch to your system you can utilize the remaining open channels.

What's Included?

IP Security Cameras
E893AB-E
Security NVR
N864A64B

Dimensions (WxDxH): 2.9" x 6.9" x 2.9" (73mm x 175mm x 70mm)
Weight: 1.15lbs / 0.52kg

Package Contents:

4K Deterrence IP Camera

Mounting
Kit

60ft Cat5 Extension Cable*

Quick Start
Guide

*Cables are included unless specified otherwise in the product options.
4K (8MP) Ultra HD, ensuring clear and detailed footage, every time¹
See more with a wide-angle 108° field of view
Superior nighttime clarity with Color Night Vision²
Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness³
Warning light can be programmed to illuminate when a person or vehicle is detected
Using 1 of 3 selectable, remote activated sirens to deter unwanted guests
Built-in mic and speaker allows you to listen and speak to visitors with Two-way talk⁴
Enhanced Two-way Talk with Quick Response Messages lets you pre-record specific messages with your own voice
Deter unwanted guests with the remote-activated siren
Smart motion detection plus offers the option of either Face detection or Person and Vehicle Detection⁵
By activating Face Detection with Mask Detection Technology, get notifications when a person is not wearing mask. When automatic voice prompts enabled, the system will ask visitors to "Please wear a face mask" when masks are not detected
Receive notifications when a person, vehicle or face is detected on your property from your Lorex App™ app⁵
Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value

Info / Panic Button
Hard Drive, Network, Recorder & Power LEDs
USB
Power Button
Power Input
Power Switch
PoE Ports
Alarm
HDMI
VGA Port
RS232
LAN
Audio In / Out

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

4K (8MP) IP cameras are required to take advantage of 4K recording.
Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility

Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
