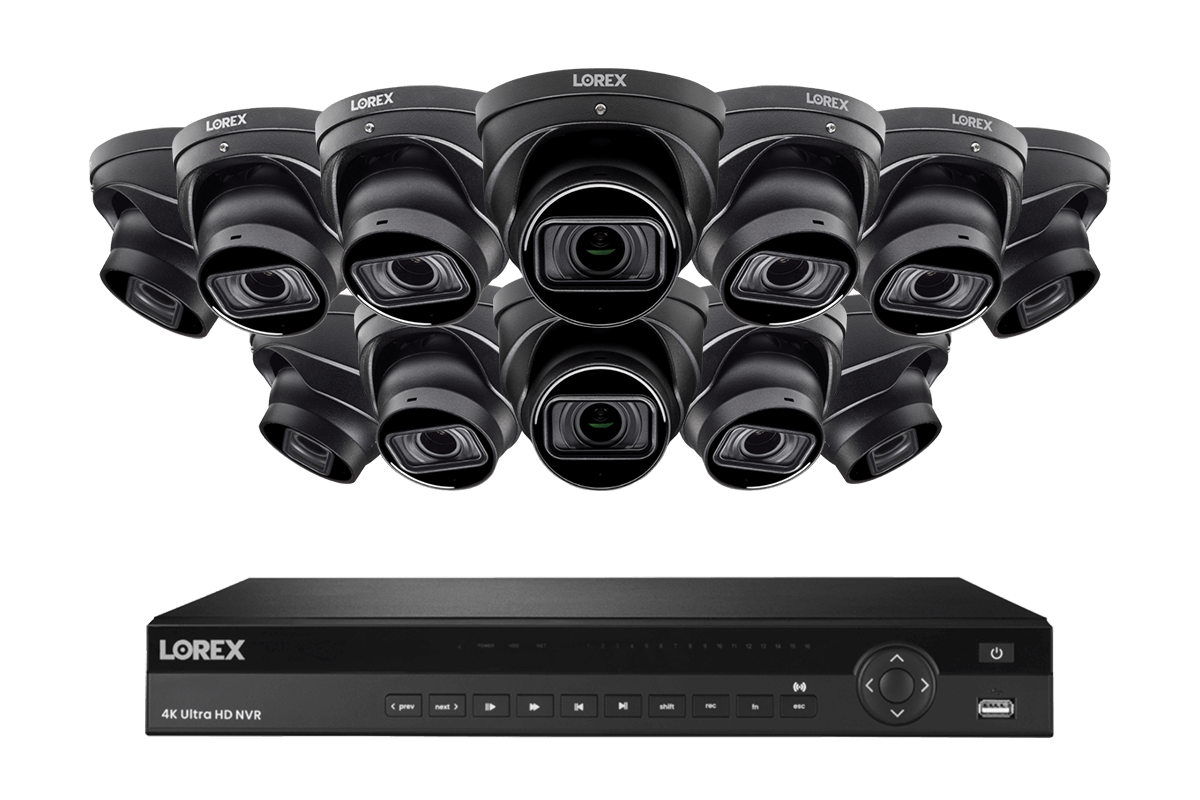

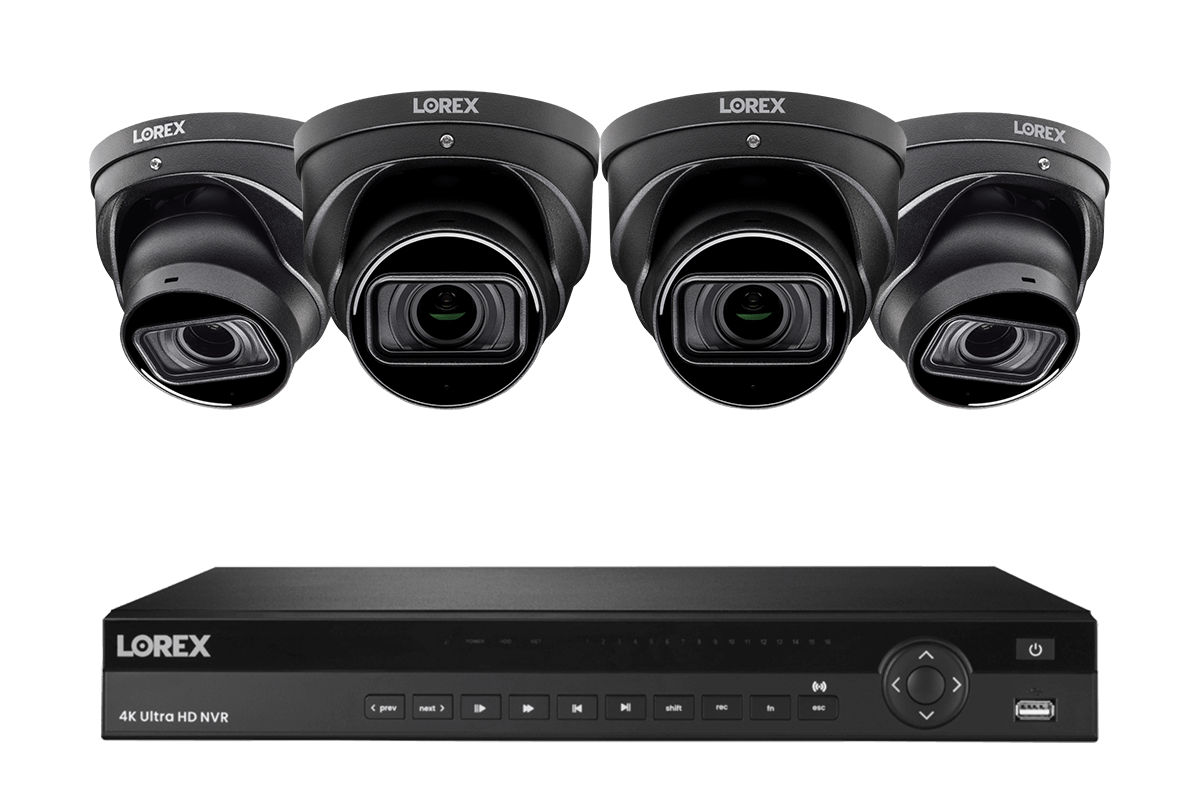

Lorex 4K (16 Camera Capable) 4TB Wired NVR System with Nocturnal 4 Smart IP Dome Cameras Featuring Motorized Varifocal Lens, Listen-In Audio and 30FPS Recording - Lorex Technology Inc.

Roll over image to zoom in Click on image to zoom

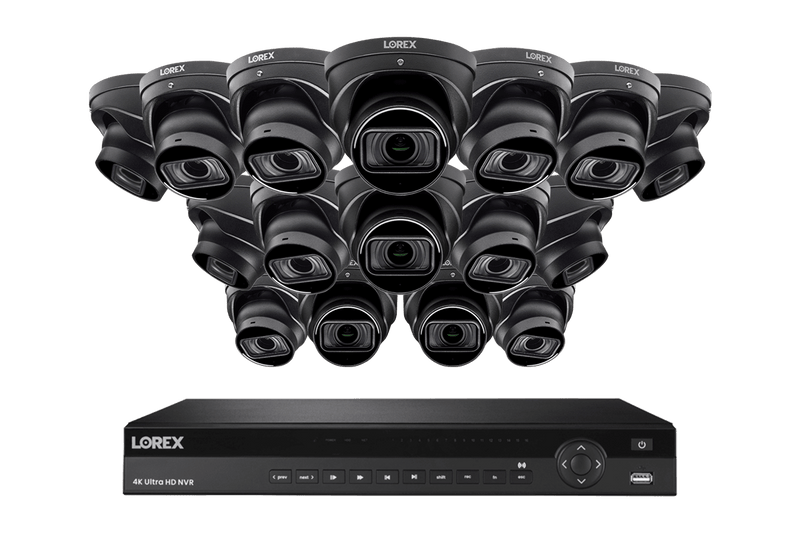

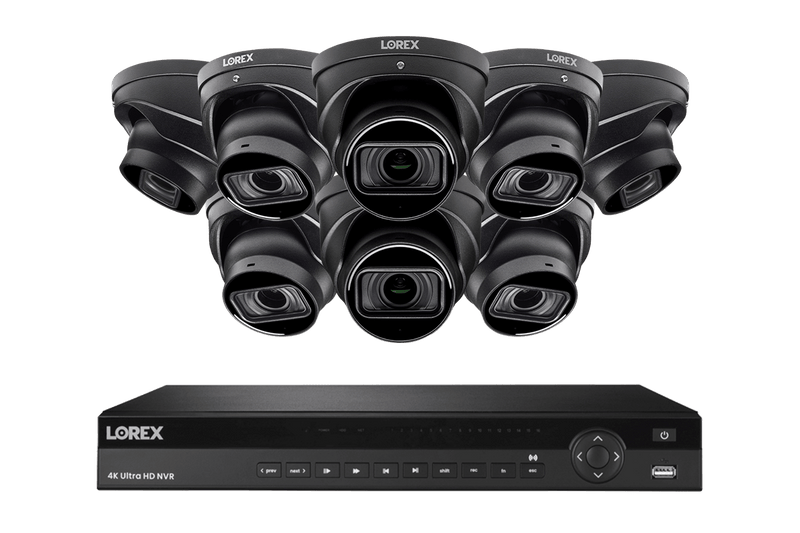

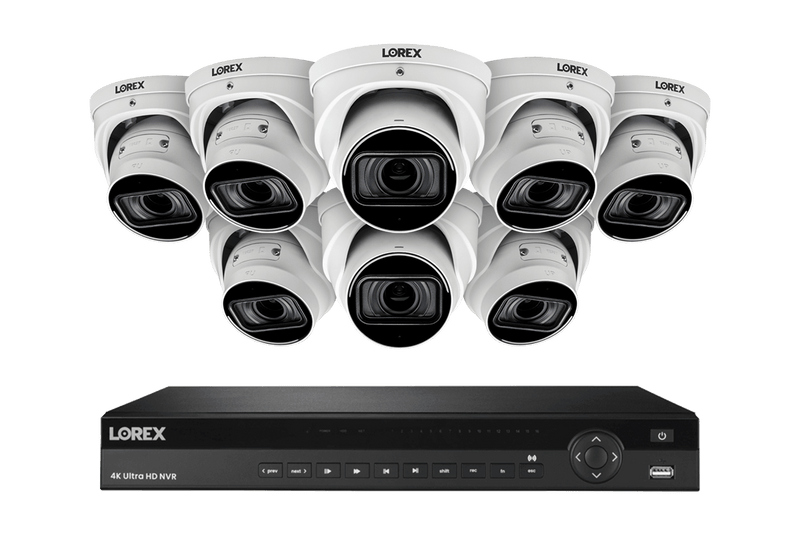

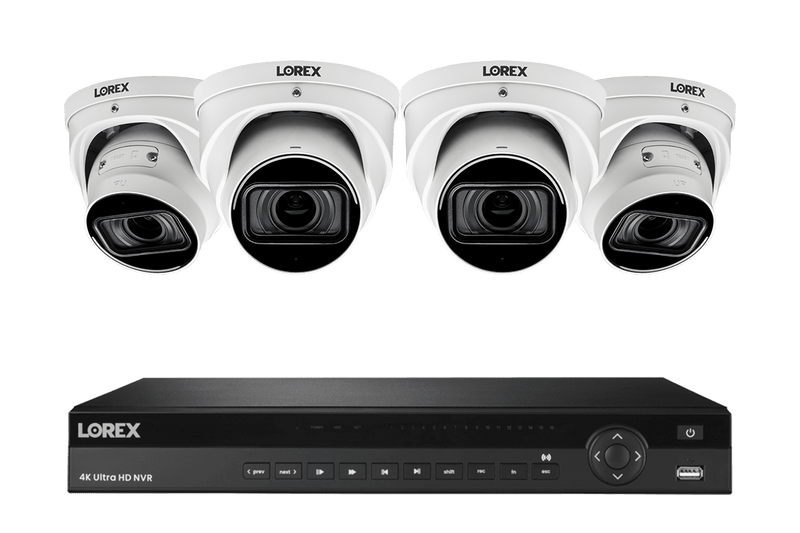

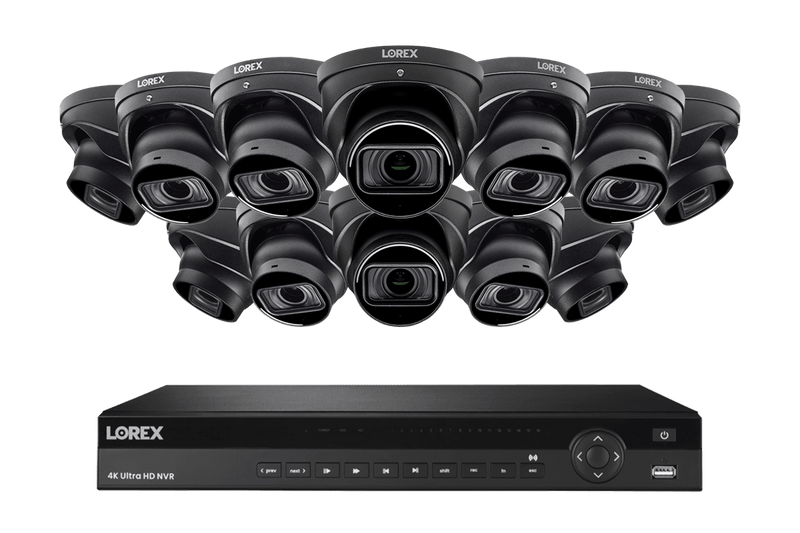

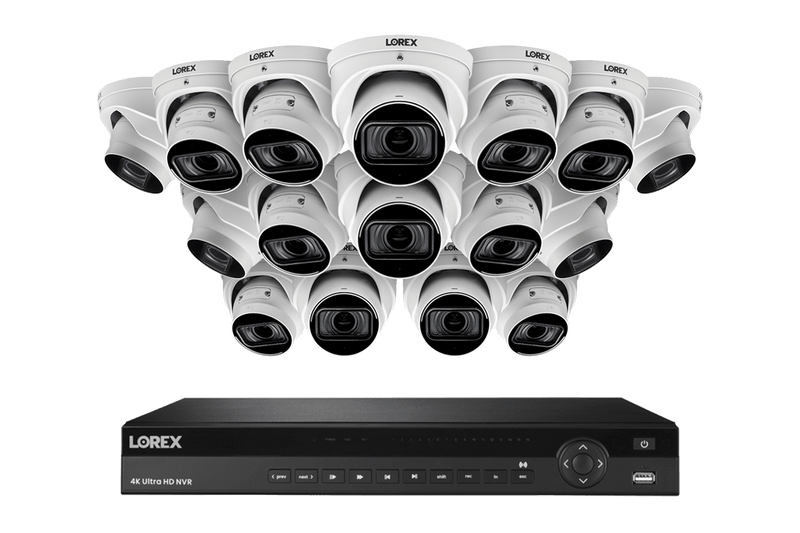

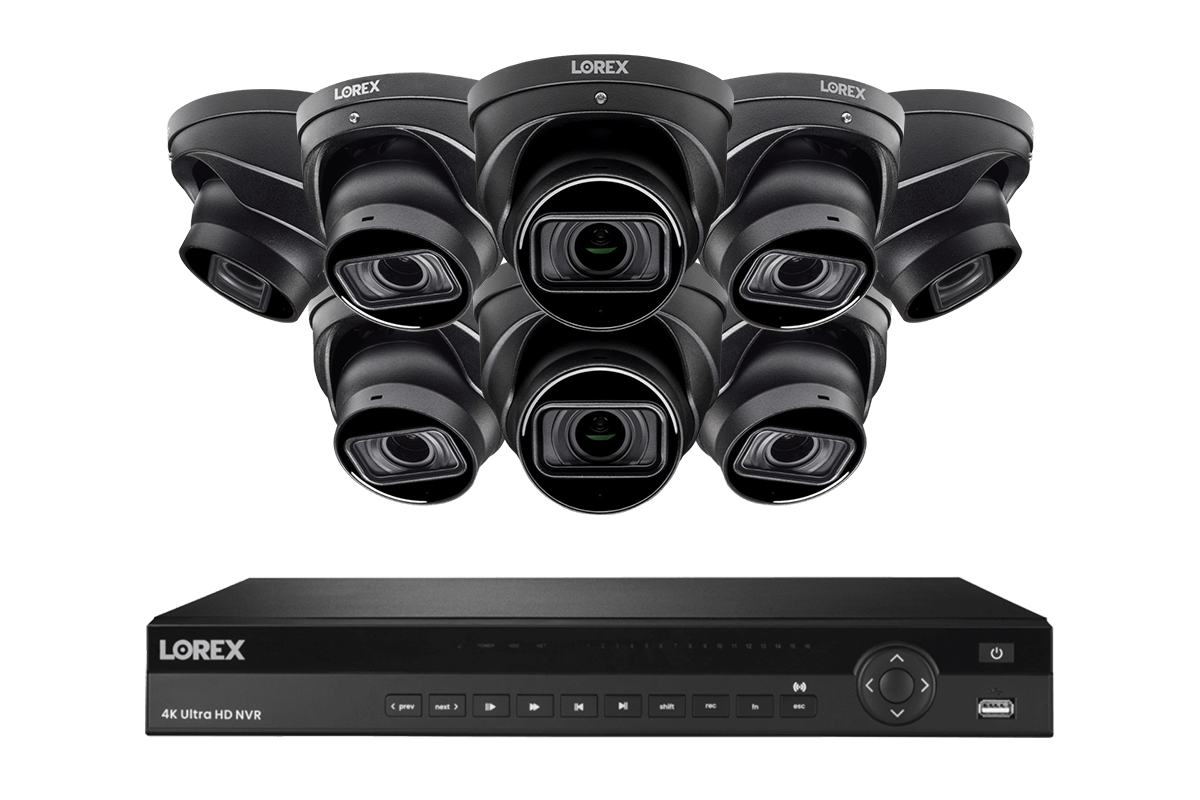

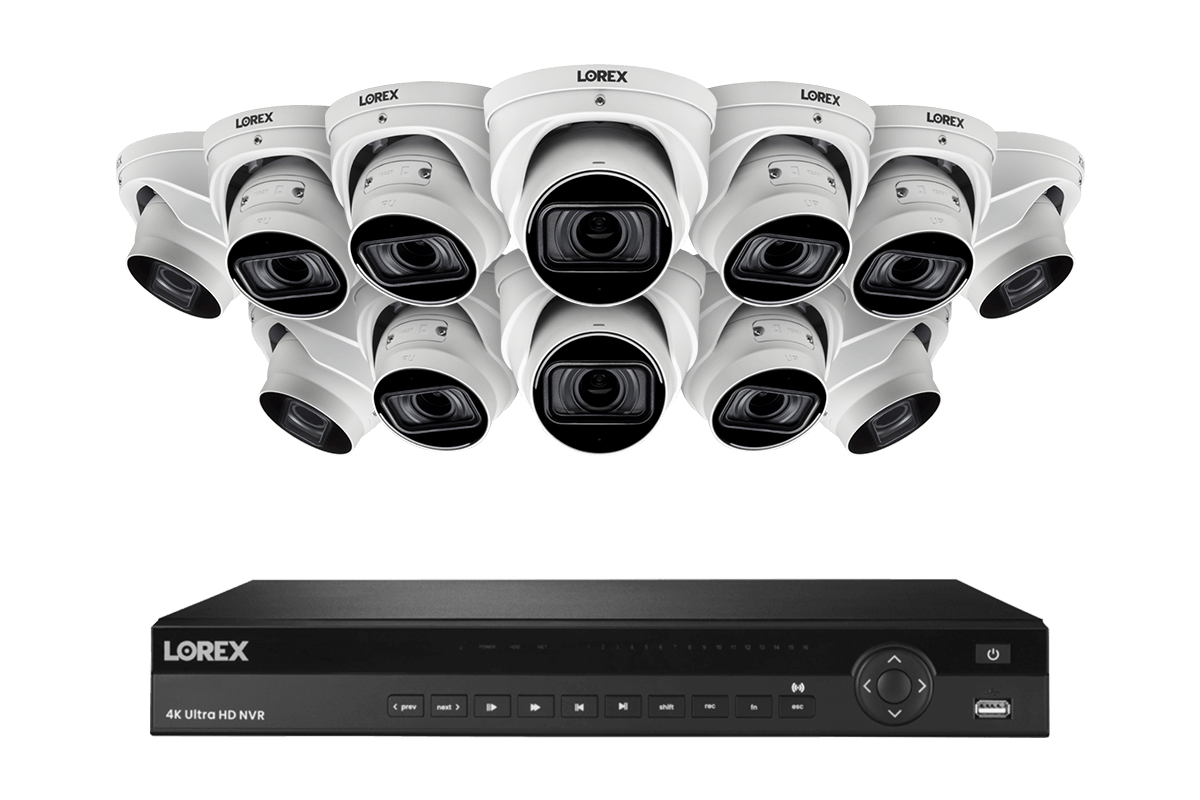

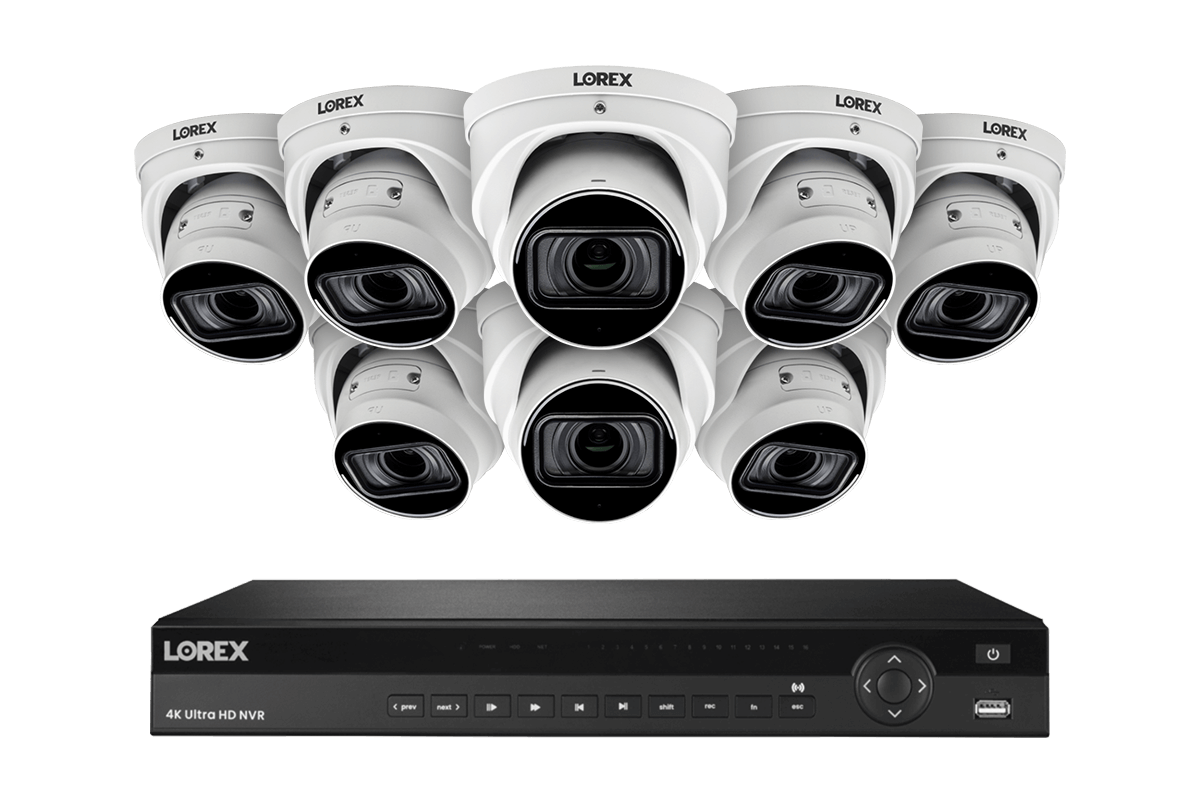

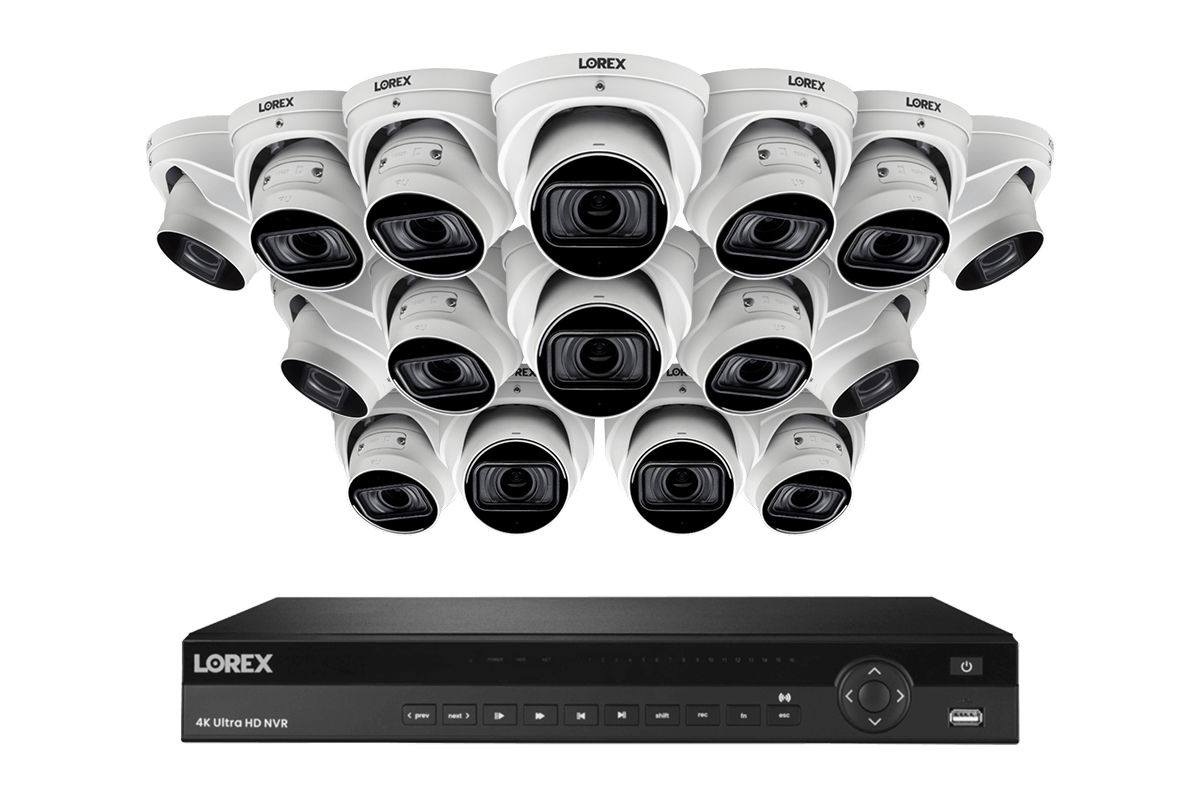

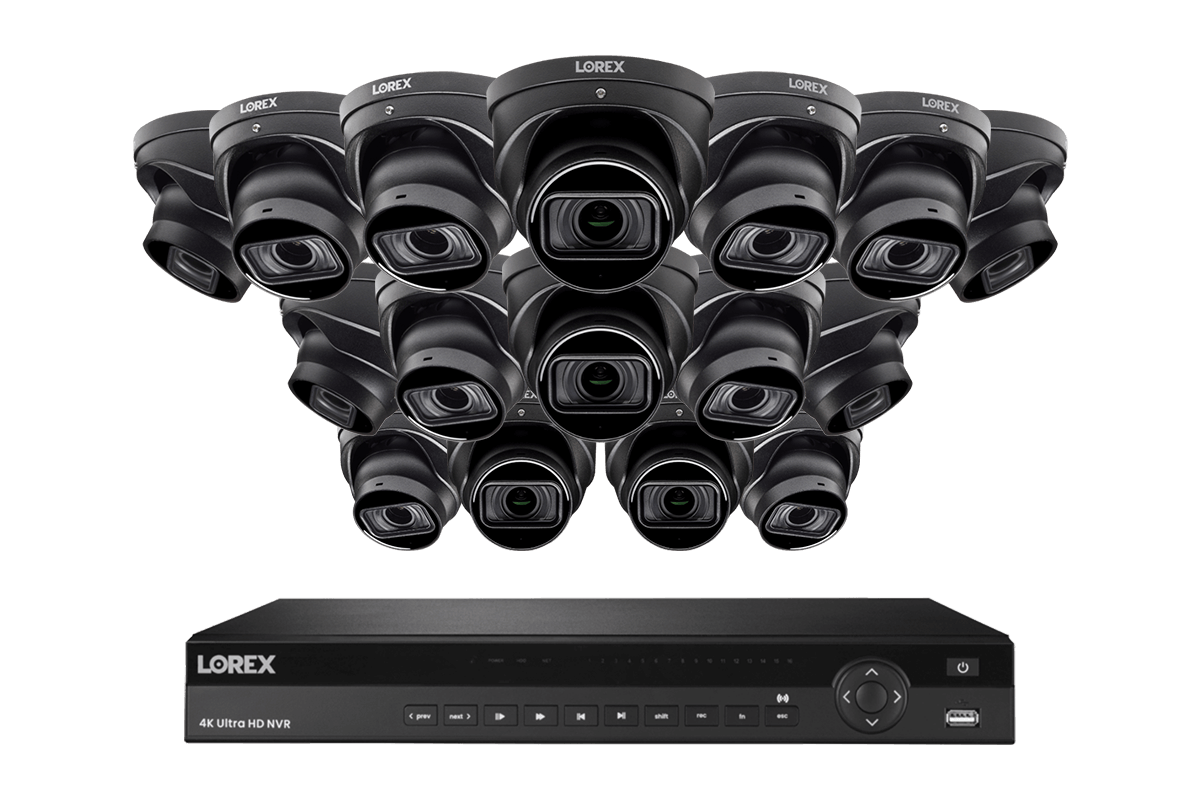

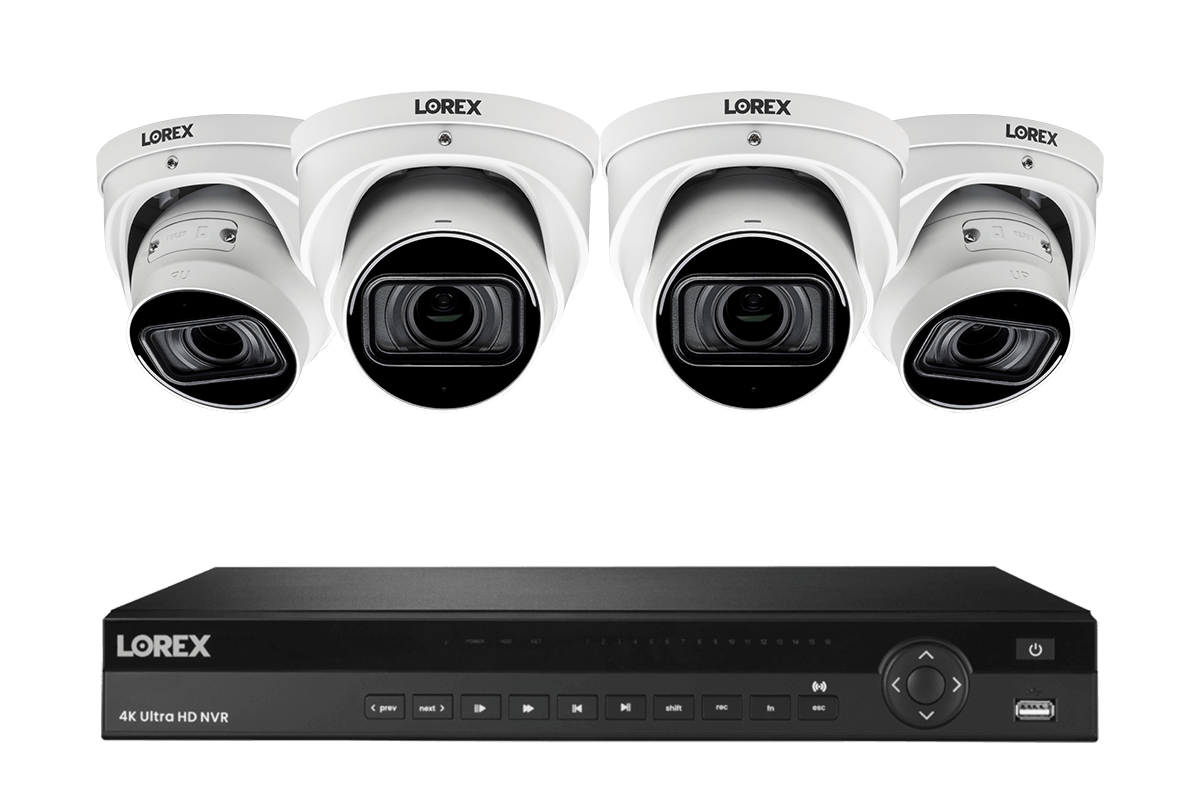

Lorex 4K (16 Camera Capable) 4TB Wired NVR System with Nocturnal 4 Smart IP Dome Cameras Featuring Motorized Varifocal Lens, Listen-In Audio and 30FPS Recording

Name: Lorex 4K (16 Camera Capable) 4TB Wired NVR System with Nocturnal 4 Smart IP Dome Cameras Featuring Motorized Varifocal Lens, Listen-In Audio and 30FPS Recording
Brand: Lorex Discontinued
SKU: NC4K4MV-1616BD-2
Price: 2159.99 CAD
Availability: OutOfStock

NC4K4MV-1616BD-2New ArrivalNew ArrivalNew ArrivalNew ArrivalNew ArrivalNew ArrivalNew Arrival

Number of cameras:

Color:

Variant

Cables sold separately. Purchase CAT5e/CAT6 extension cables here.

Share this product

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

NOCTURNAL 4
SERIES SECURITY CAMERA

Your business deserves the best security. This 16-channel Nocturnal 4 Security System will deliver just that. With smooth Real-Time 4K recording, next level Color Night Vision, Smart Motion Detection, Listen-In Audio, ePoE technology, and IP67 rated weatherproof metal exteriors, our latest Nocturnal 4 Dome Security Cameras have everything and more to provide the highest level of surveillance for your business around-the-clock.

LNE9393 and LNE9383 Bullet Nocturnal Cameras

See Clearly,
Day and Night

Ultra HD Resolution

Nocturnal security cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video and incomparable low-light performance.

Color Night Vision

Nocturnal security cameras have the longest night vision ranges available. With the help of external lighting, these cameras will also record in full color all night long.

Real-time 30 FPS

Don't miss a moment with our Real-Time 4K Nocturnal Security Cameras. With 30 frames recorded within each second, the on-screen movement will look like you are witnessing events in real life.

Motorized Varifocal Lens

Varifocal cameras are able to zoom in and out using their 4× optical zoom lenses. Optical zooms mean that no video quality is lost when you are zoomed in, making these cameras extremely versatile.

1× 2× 3× 4×

Improve Service, Efficiency, and Profitability

People Counting

Advance people counting analytics provides valuable information about the number of people inside your premises at any point in time.

Heat Mapping

Heat Maps illustrate customer movement to better understand where the heaviest and lightest traffic areas are.

Audio Recording

A built in microphone will add another layer of security coverage. Listen-in audio can add valuable information (such as voices) or analysis to the scene*.

*Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.

Go The Distance With ePoE Technology

Save on long distance cabling with Nocturnal 4 Cameras. They feature Enhanced PoE (ePoE) technology, which allows you to connect them up to 600m (2000 ft) away, compared to the standard 100m (328 ft), without the need for numerous PoE switches.

^{*N883 Series NVRs have 8 designated ePoE ports (CH 1-8) compatible with Nocturnal 4 Series Cameras.}

Built to Last

Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.

Built to Last

Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.

Built for the
Outdoors

Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.

IP67 Water Rating

The IP67 durable camera exterior ensures protection against harsh weather conditions

–40 °C / -40 °F Cold Rating

These cameras are engineered to withstand extremely cold climates and will continue to operate in temperatures as low as –40 °C / –40 °F.

60 °C / 140 °F Heat Rating

These cameras are also built to tolerate blistering hot temperatures and will continue to operate in temperatures as high as 60 °C / 140 °F.

Always Know What's Happening

Keep an eye on trespassers and vehicles with advance AI features like Smart Motion Detection, which detects motion from person/vehicle

Person/Vehicle Detection

Secure access anytime, anywhere

Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device or the Lorex Cloud client for your computer. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of the Lorex Cloud.

Download for macOS Download for Windows

Local Storage - No Monthly Fees

Included in the NVR is a 4TB security-grade hard drive designed for advanced processing and the workload of 24/7 recording
2 hard drive bays with up to 2 × 10TB of storage space
Storage mirroring for continuous back-up of data from one hard drive to another

360° Product View

Nocturnal Comparison Chart

	Nocturnal 4		Nocturnal 3
Camera Model	LNB9383 / LNB9393 Bullet	LNE9383 / LNE9393 Dome	LNB9242 / LNB9252 Fixed Bullet	LNE9242 / LNE9252 Fixed Dome	LNB9282 / LNB9292 MVF Bullet	LNE9282 / LNE9292 MVF Dome
Resolution	Real-Time 4K (30fps)	Real-Time 4K (30fps)	Real-Time 4K (30fps)		Real-Time 4K (30fps)
Color Night Vision	Yes	Yes	Yes		Yes
Night Vision Range	60m (197ft)	50m (164ft)	30m (98ft)		30m (98ft)
Field of View (H)	110.4°–45°	110.4°–45°	107°		113°–31°
Lens Type	Motorized Varifocal	Motorized Varifocal	Fixed		Motorized Varifocal
Audio	No	Yes (Listen-in Audio)	Yes (Listen-in Audio)		Bullet: No Dome: Yes (Listen-in Audio)
Smart Motion Detection	Person/Vehicle	Person/Vehicle	Person/Vehicle		Person/Vehicle
Person Counting	Yes	Yes	No		No
Heat Mapping	Yes	Yes	No		No
Power over Ethernet Type	ePoe: 600m (2000ft)	ePoe: 600m (2000ft)	PoE: 100m (328ft)		PoE: 100m (328ft)
Operating Temperature	-40ºF ~ 140ºF / -40ºC ~ 60ºC	-40ºF ~ 140ºF / -40ºC ~ 60ºC	-40ºF ~ 140ºF / -40ºC ~ 60ºC		-40ºF ~ 140ºF / -40ºC ~ 60ºC
Ingress Protection	IP67	IP67	IP67		IP67
Vandal Resistance	IK10	N/A	N/A		N/A

What's Included?

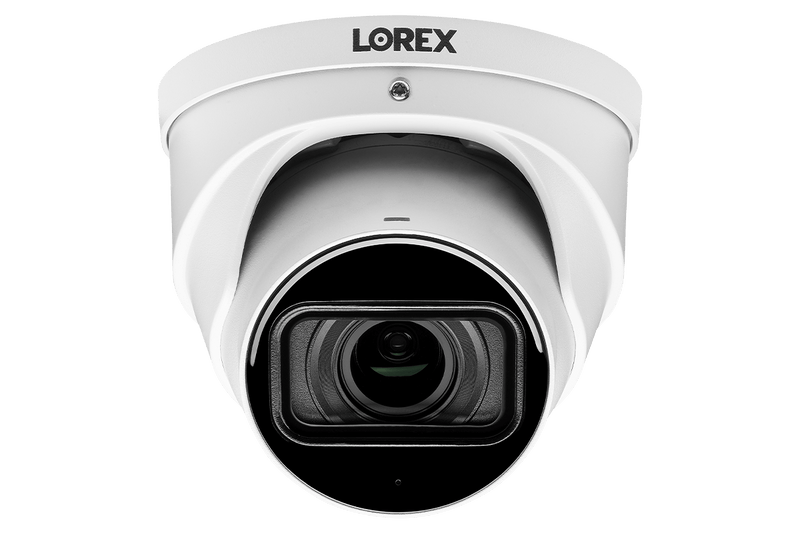

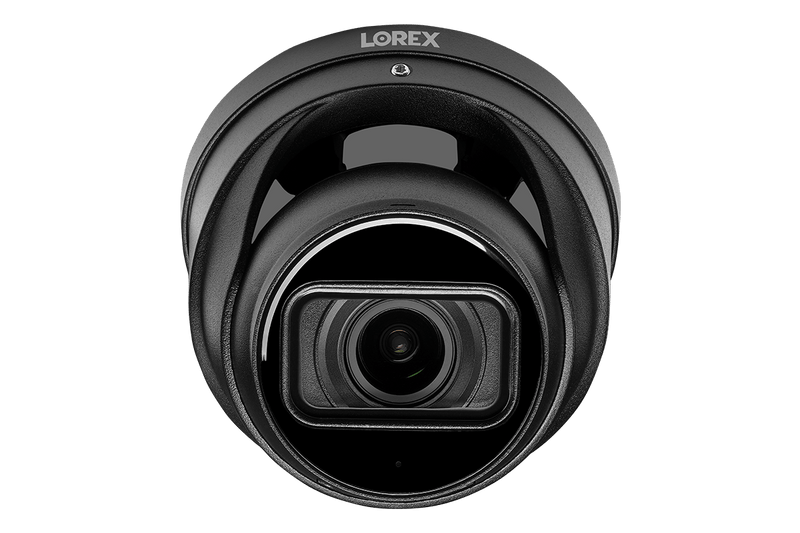

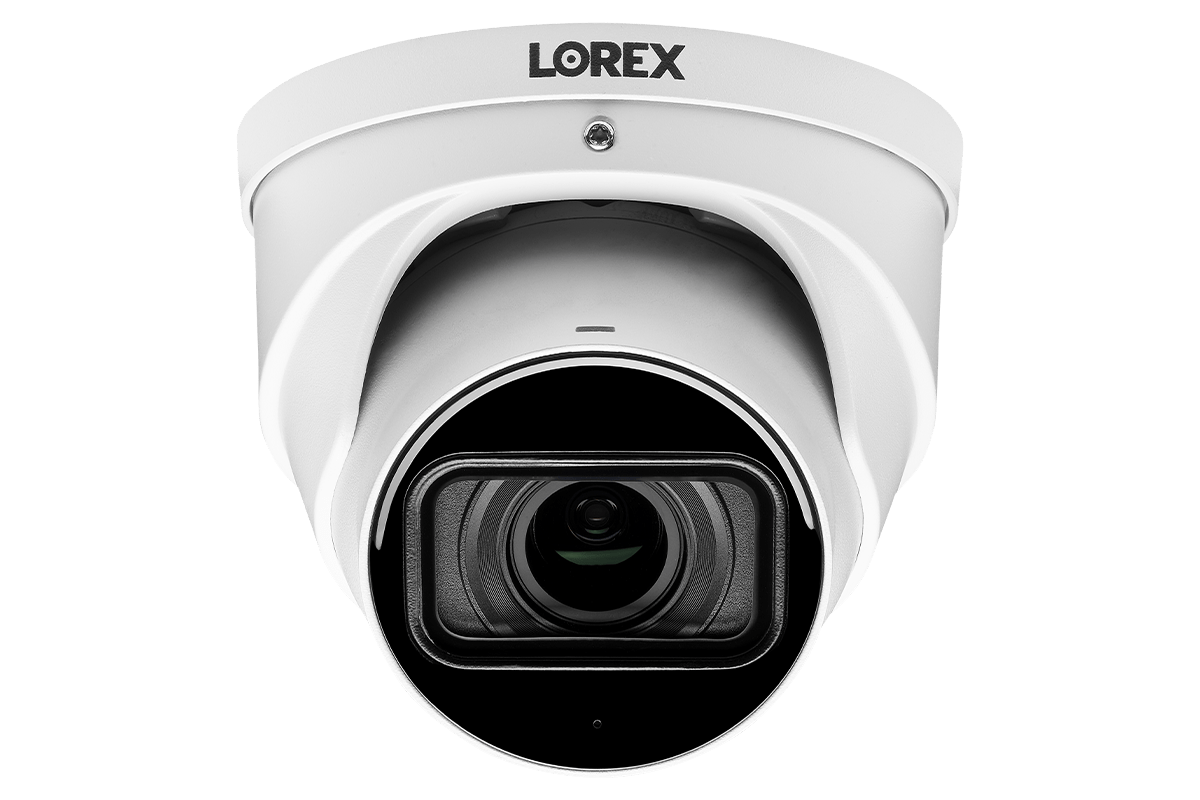

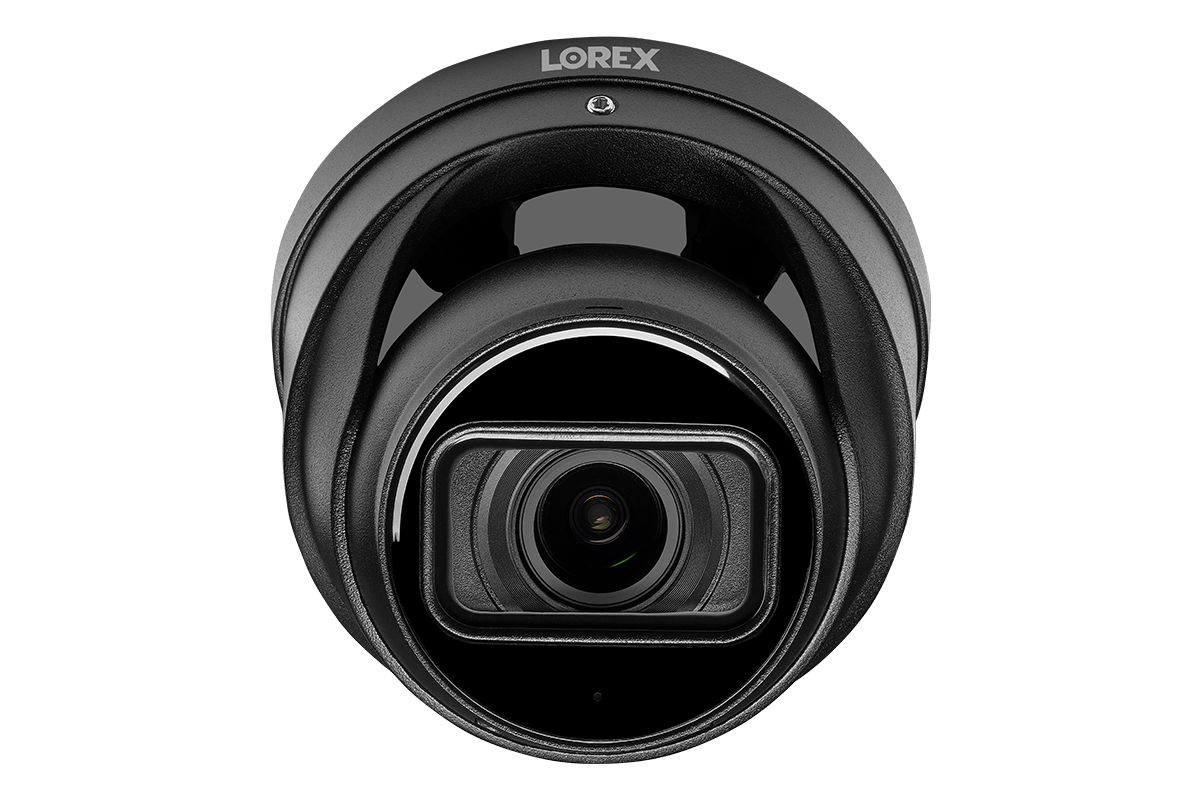

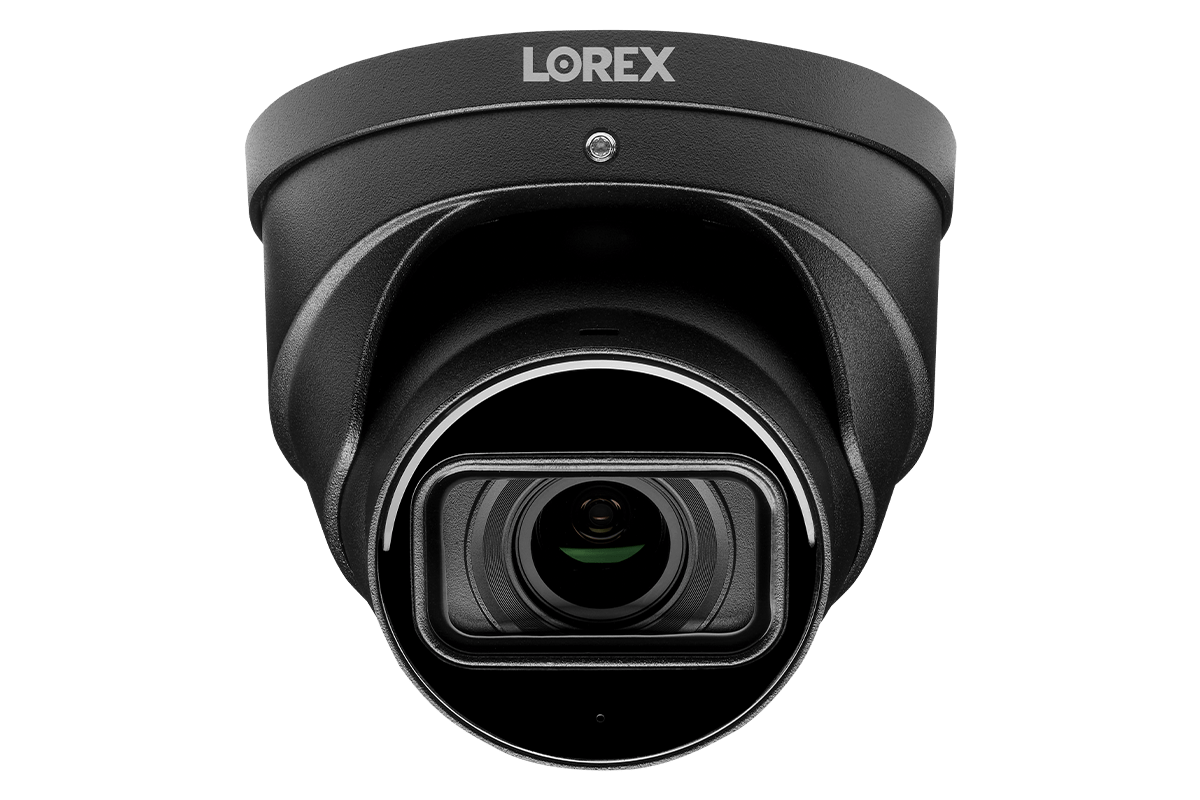

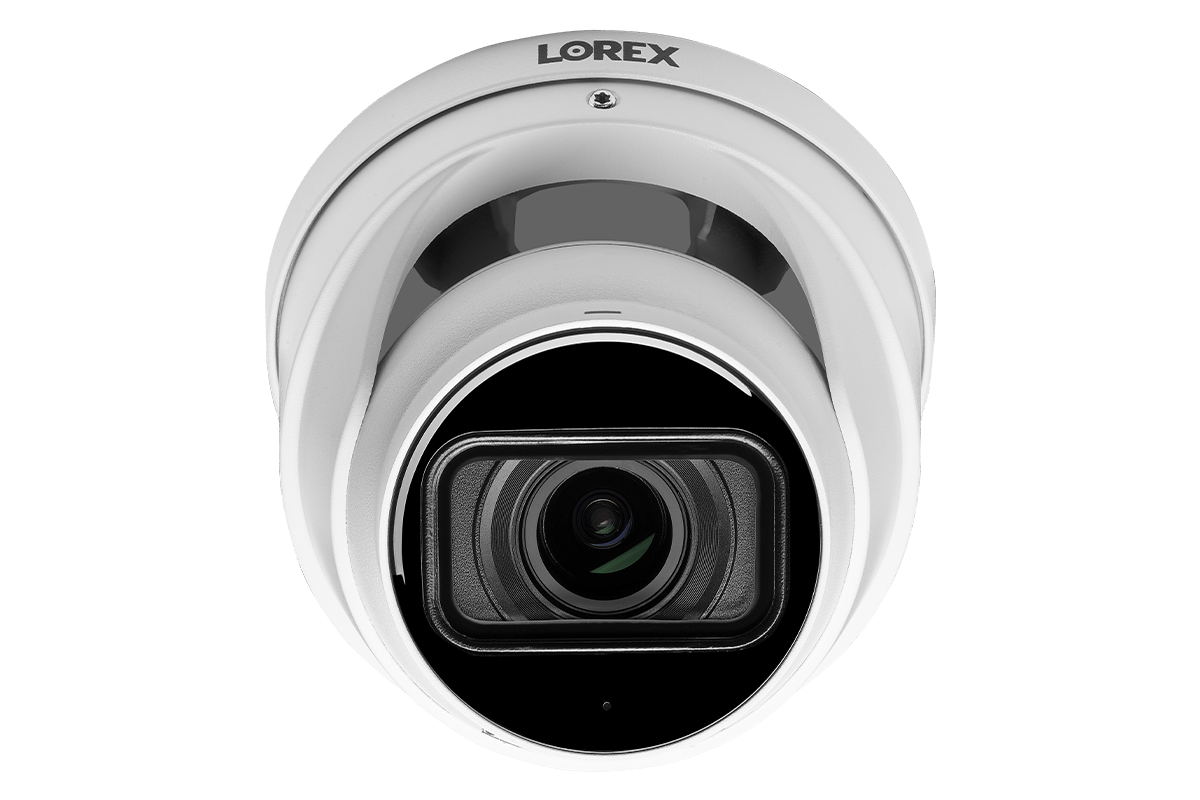

IP Security Cameras

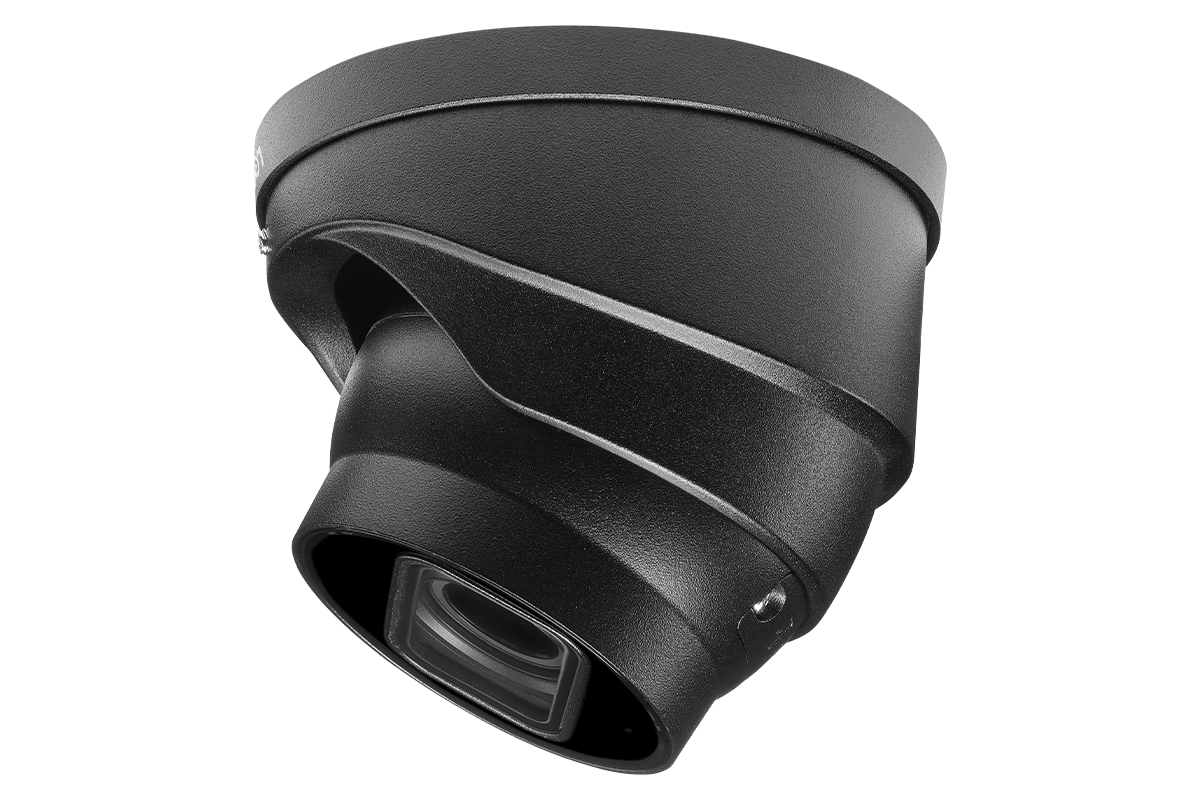

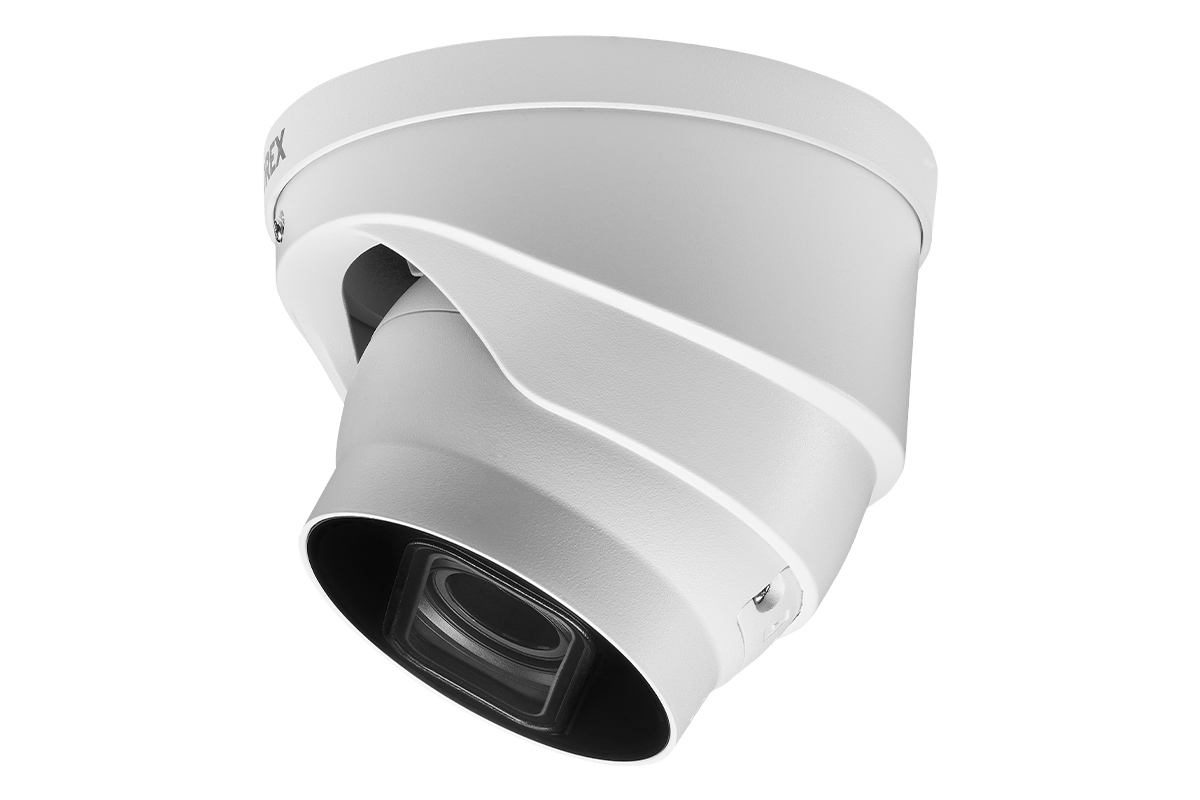

LNE9383 / LNE9393

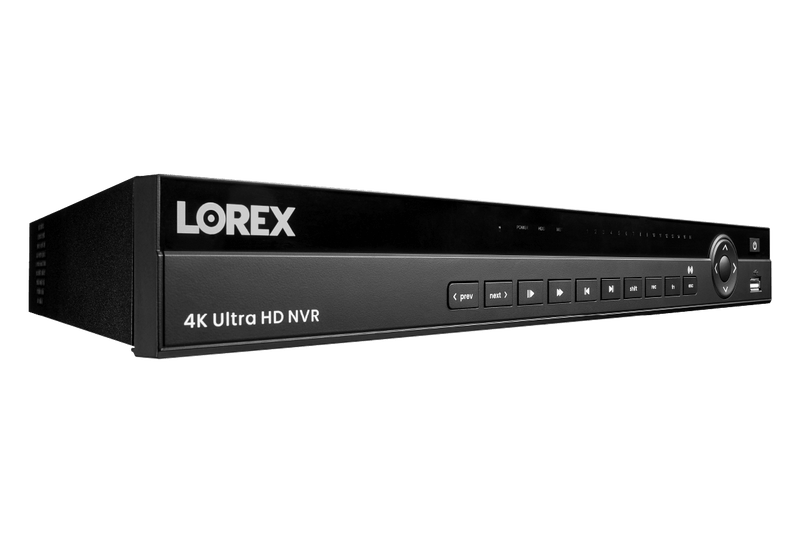

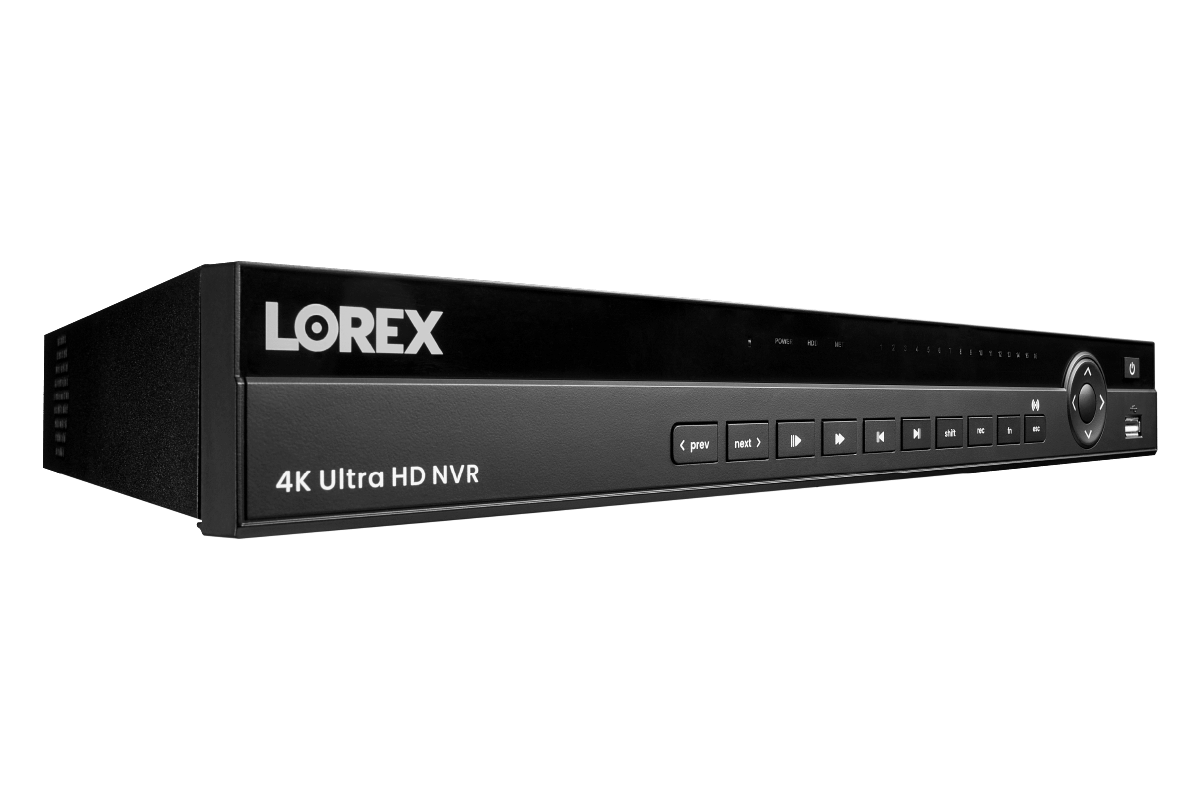

Security NVR
N883A64B

Dimensions (LxWxH): 108.3 mm × Φ122 mm (4.3" × Φ4.8")
Weight: 1.5lbs / 685g

Rear Cable Notch
Camera Base
Adjustment Screw
Camera Lens
Infrared Lights
Camera Dome Cover
Ball Camera
MicroSD Card Slot
Reset Button

Package Contents:

4K Motorized Varifocal IP Camera

Mounting Kit*

Allen Key*

^{*Per camera in multi-camera packs.}

4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit lorextechnology.com/compatibility
Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
Not intended for submersion in water. Installation in a sheltered area recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

Power, Hard Drive & Network Statuses
Channel Statuses
Navigation Controls
Power Button
Playback Controls
Switch Keyboards (shift)
Start/Stop Recording (rec)
Special Functions (fn)
Back/Cancel (esc)
Info Button

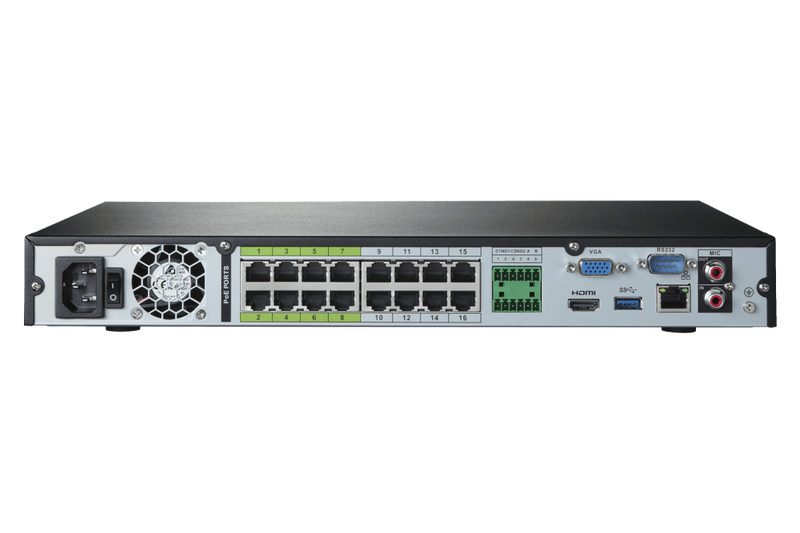

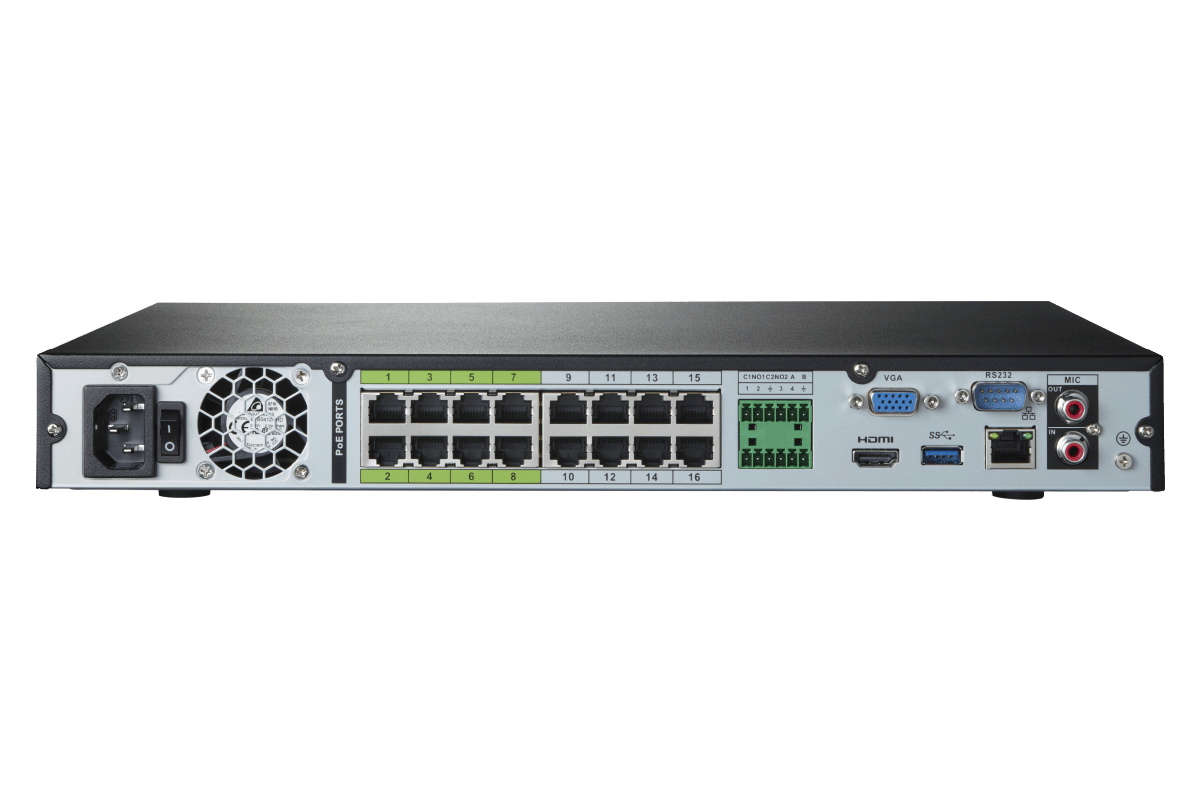

USB Port

Power Connection
Power Switch
Camera Connection (ePoE)
Camera Connection (PoE)
RS485 Alarm
Monitor Connection (VGA)
RS232
Audio In/Out
Monitor Connection (HDMI)
USB Port
Network Connection (LAN)

Package Contents:

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

4K (8MP) IP cameras are required to take advantage of 4K recording.
Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6 Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
Both firmware and software must be updated to latest version to ensure remote connectivity.
